VOCE II performance, sold as the correct pair

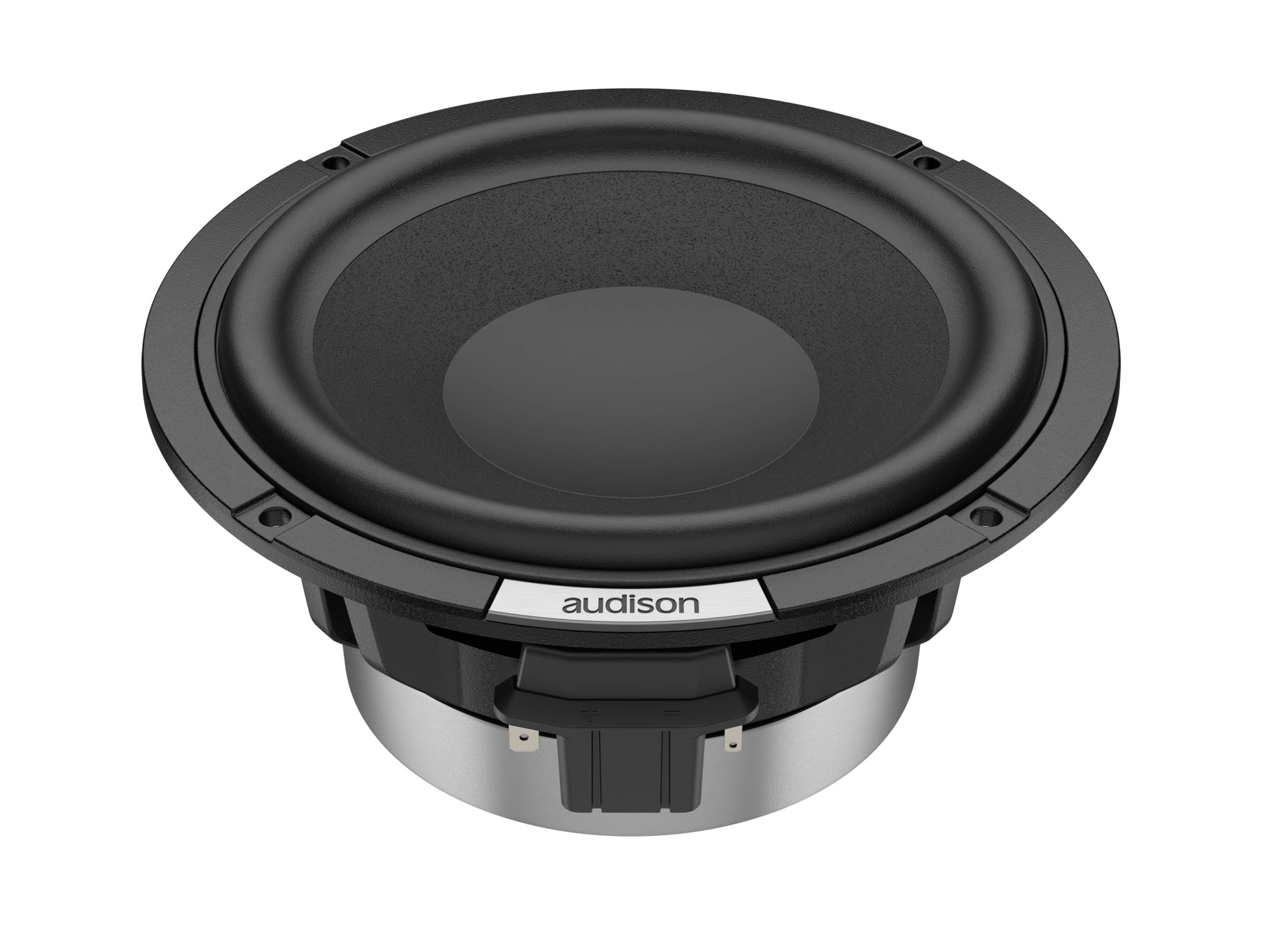

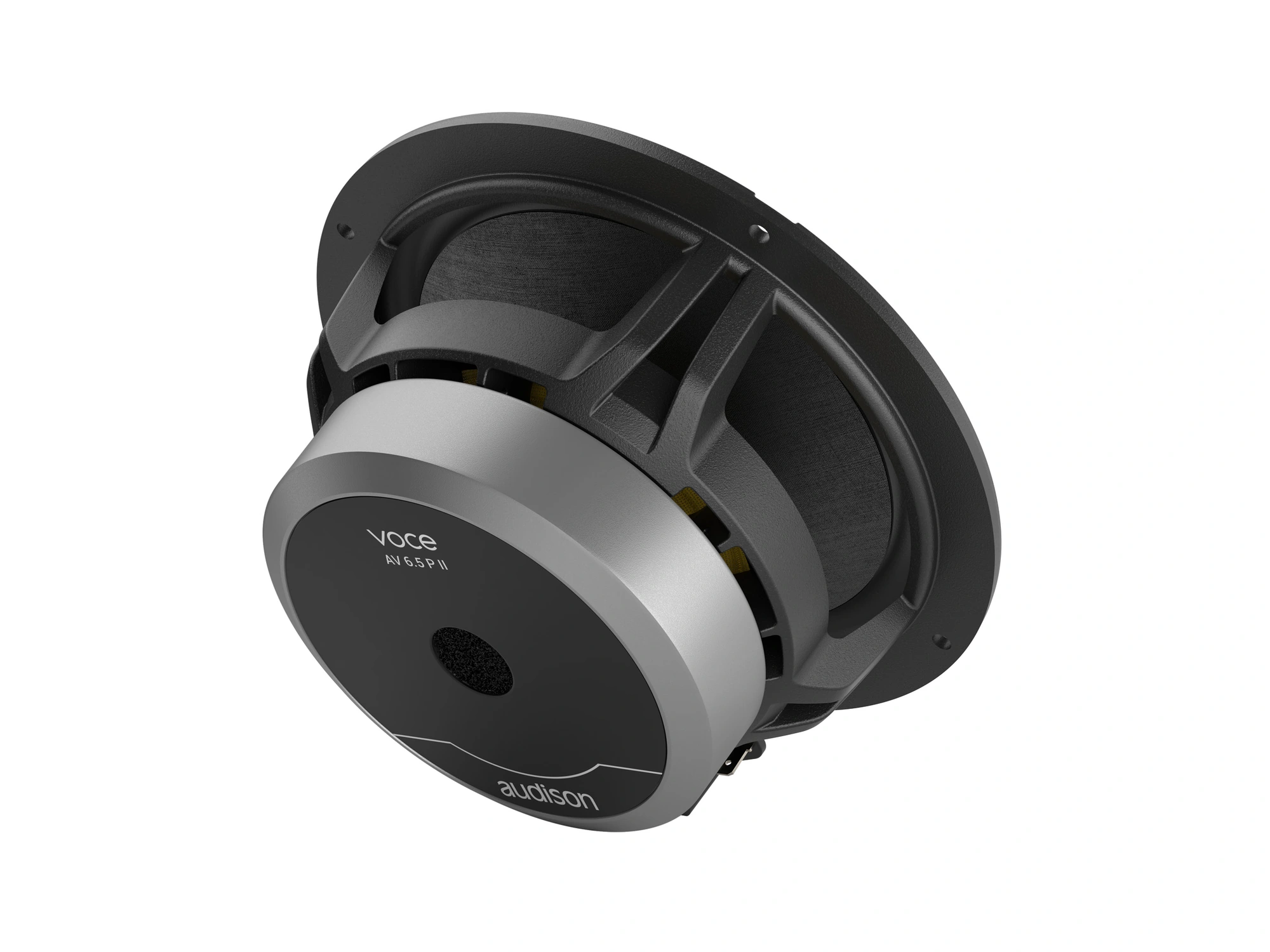

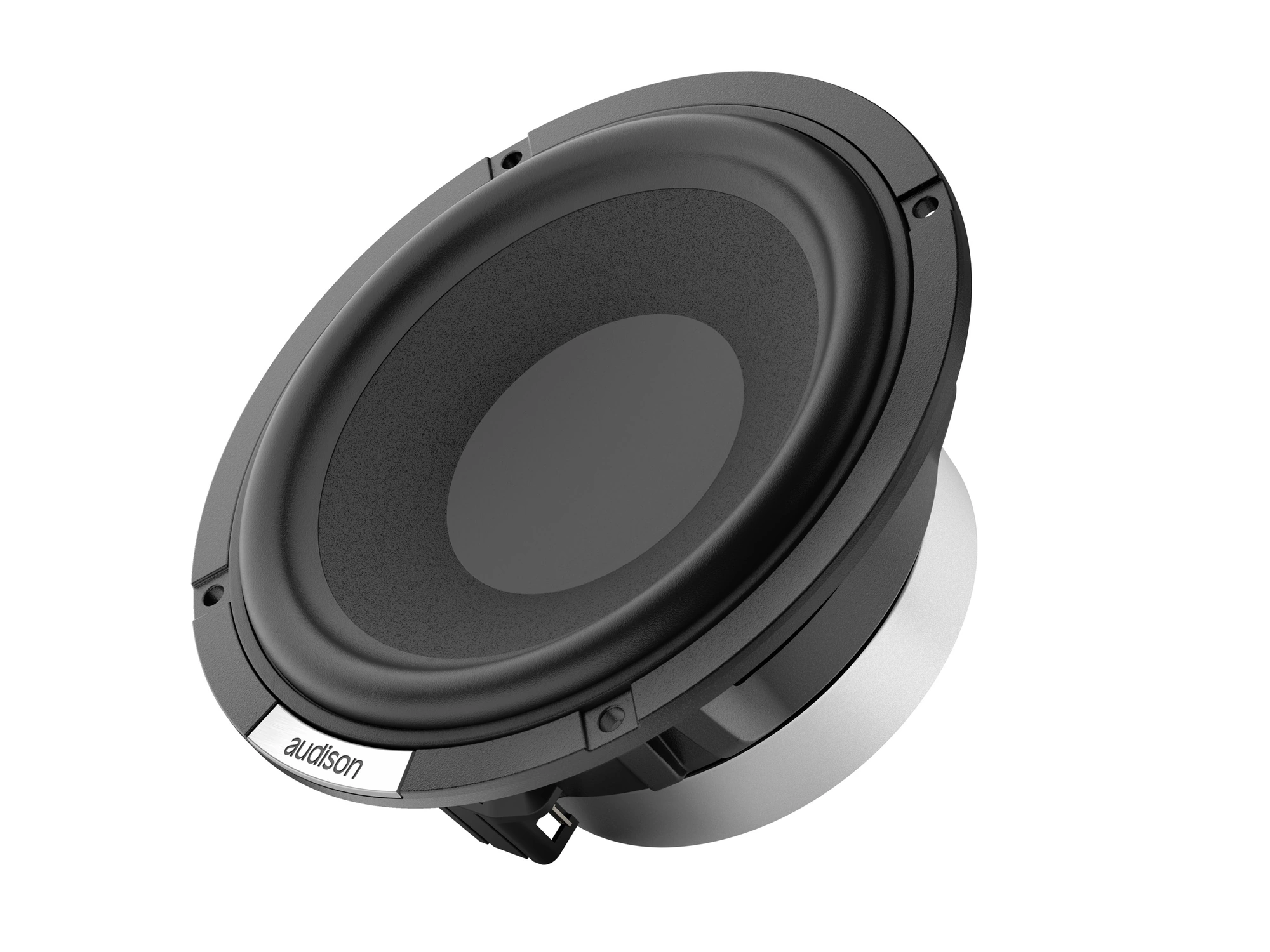

The AV 6.5 P II mid-bass pair is built for powerful, controlled low- and mid-frequency reproduction. Its semi-pressed paper and cotton-fibre cone, 40 mm CCAW voice coil, high-flux ferrite motor and die-cast aluminium basket deliver useful excursion while controlling distortion and inductance.
The current supplier-channel reference is out of stock. Keep this product saved and ask APEX to confirm the next allocation.
Verified technical specifications
| Nominal diameter | 165 mm / 6.5 inch |
|---|---|
| Nominal impedance | 4 ohm |
| Minimum impedance | 3.1 ohm |
| Peak power handling | 300 W |
| Continuous power handling | 150 W |
| Sensitivity | 91 dB |
| Frequency response | 45-7,500 Hz |
| Voice coil | 40 mm CCAW on glass-fibre former |
| Magnet | High-density-flux ferrite |
| Cone | Semi-pressed paper with cotton fibres |
| Outer diameter | 165 mm |
| Cut-out diameter | 140.8 mm |
| Mounting depth | 69.8 mm |
| Xmax | 4.95 mm |
| Driver weight | 1.6 kg each |
What is included
2 x AV 6.5 P II mid-bass drivers; P&P cable; Audison badges. Grilles are optional accessories.
System design and protection
Audison’s VOCE II advanced manual gives 70 Hz at 24 dB/octave as the active high-pass starting point, with the low-pass coordinated to the chosen tweeter or midrange. Door construction, sealing, mounting rigidity and final acoustic tuning materially affect results.
This is a premium standalone component set, not a universal plug-and-play speaker kit. Correct amplification, crossover protection, polarity, mounting and acoustic tuning are required. For a passive VOCE II system, select the manufacturer-matched VOCE II kit or crossover rather than assuming a generic network is suitable.
Exact product identification
| Manufacturer | Audison |
|---|---|
| Range | VOCE II |
| Model | AV 6.5 P II 6.5-inch Mid-Bass Set |
| Supplier SKU | 69030021 |
| Selling unit | Pair / set |
Product identity, technical data and imagery were verified against the official Audison product page. The displayed South African price follows the supplier Recommended Retail policy; local supplier-channel stock is confirmed before dispatch.
