Product overview

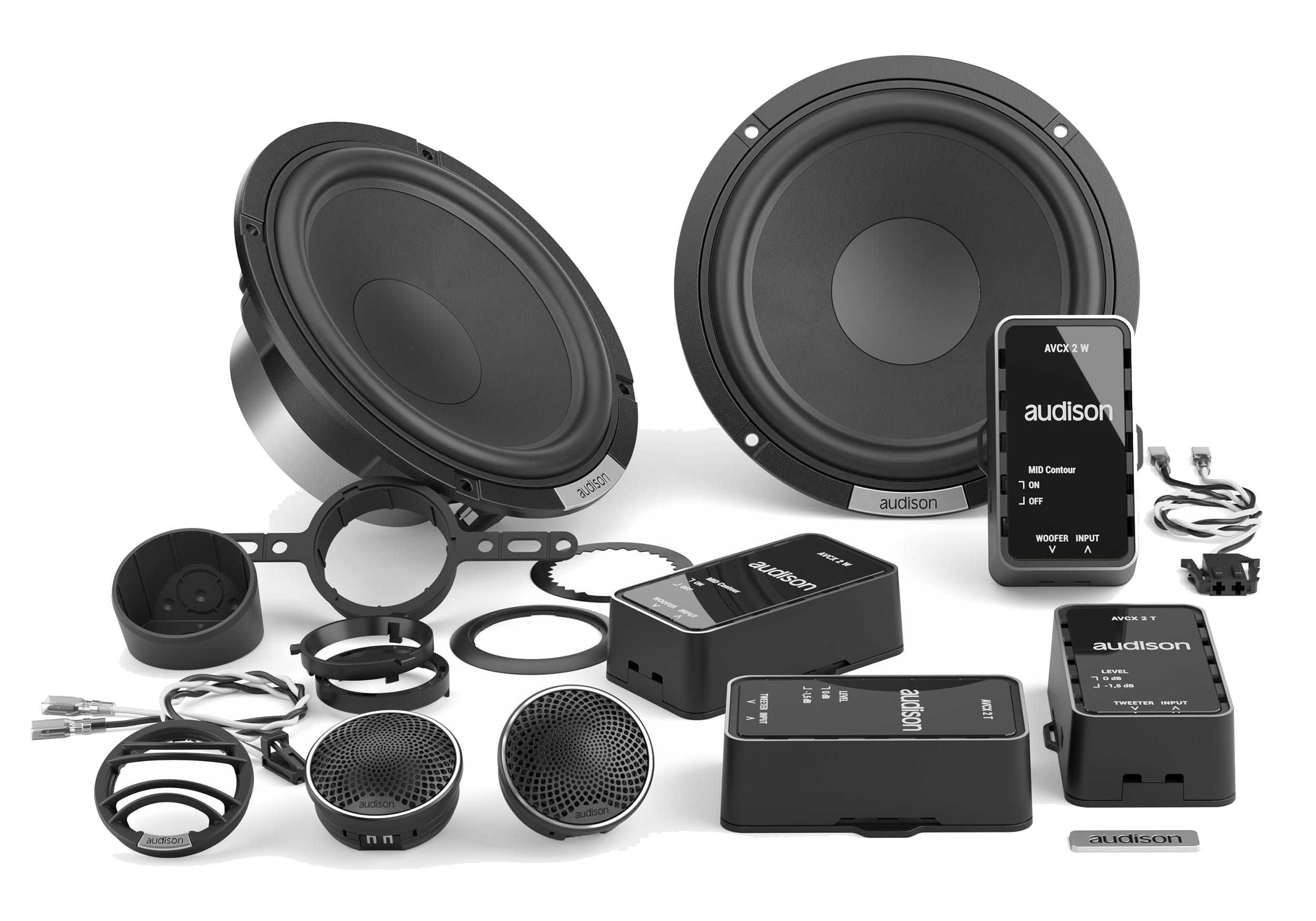

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and Hi-Res Audio certified AV 1.0 II tweeter, delivers superb performance. The integration of AVCX 2 W and AVCX 2 T crossovers simplifies installation while enabling advanced sound tuning, including bi-amplification and meticulous adjustments for tweeter level and mid contour. These crossovers, built with high-quality components, ensure a harmoniously balanced audio experience, enhancing durability and clarity. This setup achieves seamless integration and superior sound customization, making it an ideal solution for sophisticated car audio upgrades.
Key features
- Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.
- Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
- 1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.
- Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.
- Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
- AIF (Any Install Faceplate) Technology: Designed to ensure total installation flexibility and significantly reduce installation time, offering two faceplates and three mounting accessories for any configuration.
- FEM-optimized faceplates (Finite Element Method): Improve sound dispersion for a balanced and immersive listening experience from any angle.
- Mesh and spoke grilles: Both grilles are included to ensure perfect integration within the vehicle cabin, combining aesthetics and performance.
Technical specifications
| Technical Specs LF | |
|---|---|
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 250 W |
| Power Handling – Continuous | 125 W |
| Frequency Response | 50 – 5500 Hz |
| Voice Coil Diameter | 36 mm (1.42 in) |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet Size | 92 x 42 x 15 mm |
| Cone Material | PRESSED PAPER CONE |
| Crossover Type | Two Way Separate case for Woofer (AVCX 2 W – Full/6dB Oct.) & Tweeter (AVCX 2 T – 12dB/Oct.) |
| Crossover Level Adjustment | AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off |
| Technical Specs HF | |
| Tweeter Size | 25.4 mm (1 in) |
| Frequency Response | 1200 – 40000 Hz |
| Power Handling – Peak | 150 W |
| Voice Coil Diameter | 25 mm (1.42 in) |
| Dome Material | TETOLON FIBRE |
| Electric-acoustic Specs LF | |
| Re | 2.9 Ohm |
| Fs | 67 Hz |
| Mms | 13.2 g |
| Cms | 0.43 |
| BL | 4.9 |
| Qms | 6.76 |
| Qes | 0.67 |
| Qts | 0.61 |
| Vas | 10.28 l |
| Le | 0.3 mH |
| Spl | 91 dB |
| Xmax | 4.2 mm (0.17 in) |
| Kit Tech Data | |
| Crossover Low-Pass | AVCX 2 W: Woofer, Full/6dB Oct. |
| Crossover Hi-Pass | AVCX 2 T: Tweeter, 12dB/Oct. |
| Crossover Cut Off | 3.5 kHz (Mid-Contour Off) |
| Cone Diameter | 128.35 mm |
| General | |
| Weight Woofer | 1.3 kg |
| Weight Tweeter | 0.14 kg |
| Weight Crossover | 0.1 kg |
| Dimensions | |
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 140.8 mm (5.54 in) |
| Dimension C | 65.6 mm (2.58 in) |
| Dimension D | 61 mm (2.4 in) |
| Frequency Response | |
| Tweeter | Woofer |
What you are ordering
The exact Audison model shown above, SKU 69051031. Check the vehicle and system requirements before ordering OEM-fit or integration accessories.
Technical information verified against the official Audison product page.
