Product overview

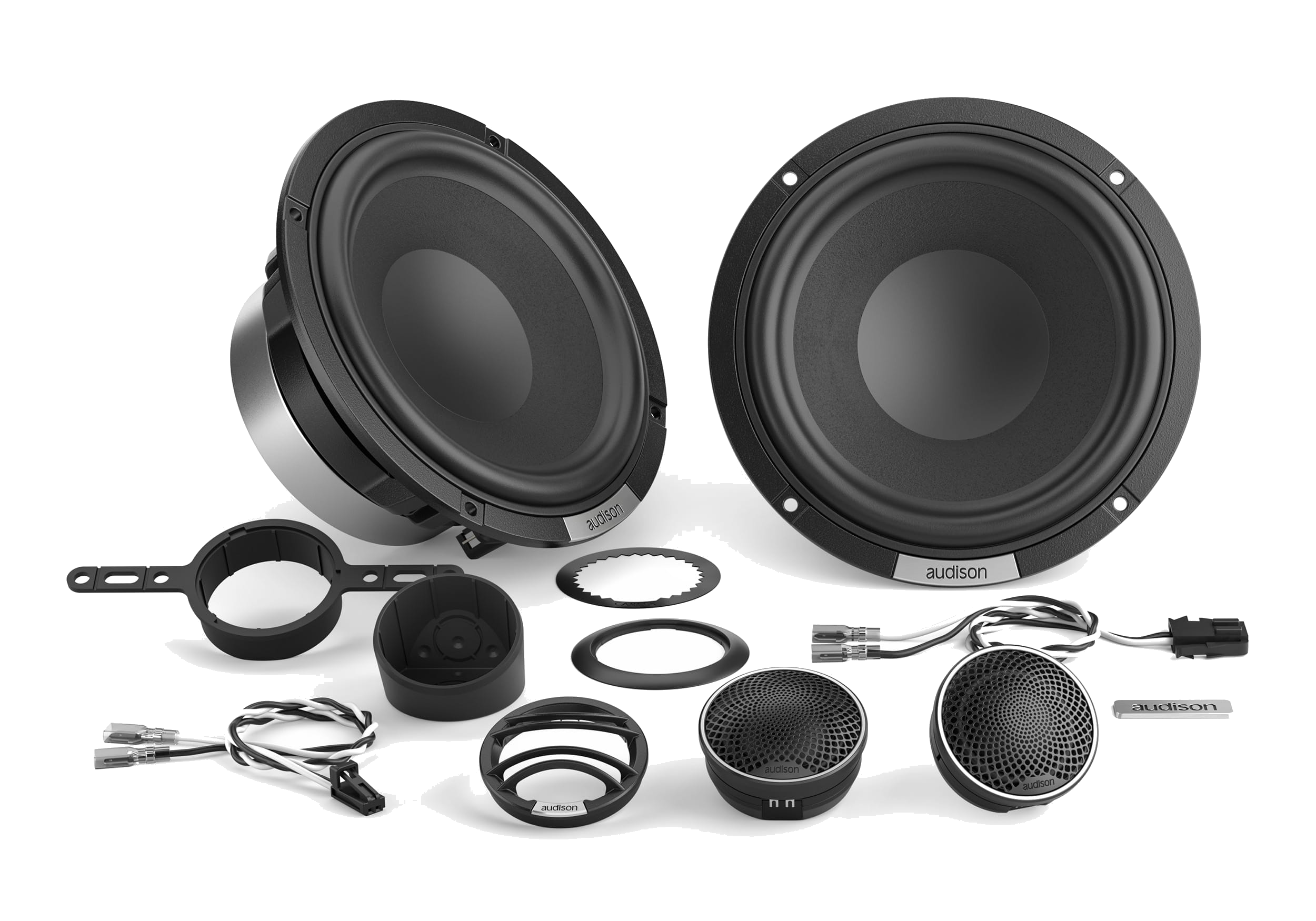

The Audison VOCE II AVK 6A P II system, engineered for dynamic performance, integrates the AV 1.1 II Hi-Res Tweeter and AV 6.5 P II Mid-Bass component. This combination achieves extraordinary power handling up to 150W RMS, attributed to the 1.6 in. (40 mm) CCAW voice coil that ensures exceptional durability and dynamic response. The system excels in delivering powerful mid-bass performance, capturing the full essence of music with clarity and precision. Enhanced installation flexibility is provided by OEM-style and Faston connectors, ensuring seamless integration into any vehicle setup.
Key features
- Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
- Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
- 1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
- Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
- OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.
- AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
- FEM-Optimized Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.
- Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
Technical specifications
| Technical Specs LF | |
|---|---|
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 300 W |
| Power Handling – Continuous | 150 W |
| Frequency Response | 45 – 7500 Hz |
| Voice Coil Diameter | 40 mm (1.57 in) |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet Size | 100 X 45 X 18 |
| Cone Material | PRESSED PAPER CONE |
| Technical Specs HF | |
| Tweeter Size | 28 mm (1.1 in) |
| Frequency Response | 1000 – 40000 Hz |
| Power Handling – Peak | 180 W |
| Voice Coil Diameter | 28 mm (1.57 in) |
| Dome Material | TETOLON FIBRE |
| Electric-acoustic Specs LF | |
| Re | 2.9 Ohm |
| Fs | 66 Hz |
| Mms | 15.3 g |
| Cms | 0.28 |
| BL | 5.5 |
| Qms | 9 |
| Qes | 0,61 |
| Qts | 0.57 |
| Vas | 9.09 l |
| Le | 0.3 mH |
| Spl | 91 dB |
| Xmax | 4.95 mm (0.19 in) |
| Kit Tech Data | |
| Cone Diameter | 128.3 mm |
| General | |
| Weight Woofer | 1.6 kg |
| Weight Tweeter | 0.1 kg |
| Weight Crossover | 0.1 kg |
| Dimensions | |
| Dimension A | 165 mm (6.5 in) |
| Dimension A1 | 48 mm |
| Dimension B | 140.8 mm (5.54 in) |
| Dimension C | 74.2 mm (2.92 in) |
| Dimension D | 69.8 mm (2.75 in) |
| Dimension B1 | 44.9 mm |
| Dimension C1 | 26.7 mm |
| Dimension D1 | 16.5 mm |
| Frequency Response | |
| Tweeter | Woofer |
What you are ordering
The exact Audison model shown above, SKU 69051035. Check the vehicle and system requirements before ordering OEM-fit or integration accessories.
Technical information verified against the official Audison product page.
