Product overview
Small, efficient and uncompromisingly stable – the M ONE X – 24V Edition is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X – 24V Edition a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X – 24V Edition amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link. In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Key features
- Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 12V supply voltage
- Smart highlevel input with ADEP circuit and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- TwinPower Link for connecting two amplifiers in bridged mode
- Bass remote control for volume adjustment
- Low heat dissipation thanks to extraordinary efficiency
Technical specifications
| Technical data | |
|---|---|
| Power RMS ≤ 1% THD+N | Normal operation | (One amplifier) |
| – @ 4 Ohms | 1 x 400 Watts |
| – @ 2 Ohms | 1 x 700 Watts |
| – @ 1 Ohm | 1 x 1,030 Watts |
| – bridged @ 4 Ohms | – |
| – bridged @ 2 Ohms | – |
| Max. output power per channel*: | Up to 1,180 Watts RMS @ 1 Ohm |
| Amplifier technology | Class D |
| Inputs | 2 x RCA / Cinch | 2 x Highlevel speaker input | 1 x Remote In | 1 x Remote control input |
| Input sensitivity | RCA / Cinch 0.5 – 6 Volts | Highlevel 1.1 – 13 Volts |
| Input impedance RCA / Cinch | 20 kOhms |
| Input impedance highlevel | 9 – 33 Ohms |
| Outputs | 1 x Speaker output |
| Output voltage RCA / Cinch | – |
| Signal converter for digital input | – |
| Frequency response | 10 Hz – 250 Hz |
| Bass boost | 0 – 12 dB / 30 – 80 Hz |
| Highpass | – |
| Lowpass | 50 Hz – 250 Hz adjustable |
| Bandpass | 10 Hz – 250 Hz adjustable |
| Subsonic | 10 Hz – 50 Hz adjustable |
| Phase | 0 – 180° adjustable |
| Slope high- / lowpass | – |
| Slope subsonic / lowpass | 12 / 24 dB/Oct. |
| Signal-to-noise ratio digital input | – |
| Signal-to-noise ratio analog input | 95 dB (A-weighted) |
| Distortion (THD) | 0.20 % |
| Damping factor | 150 |
| Operating voltage | 18 – 36 Volts (max. 5 sec. down to 12 Volts) |
| Idle current | 400 mA |
| Operating temperature range | -40 °C to +70 °C |

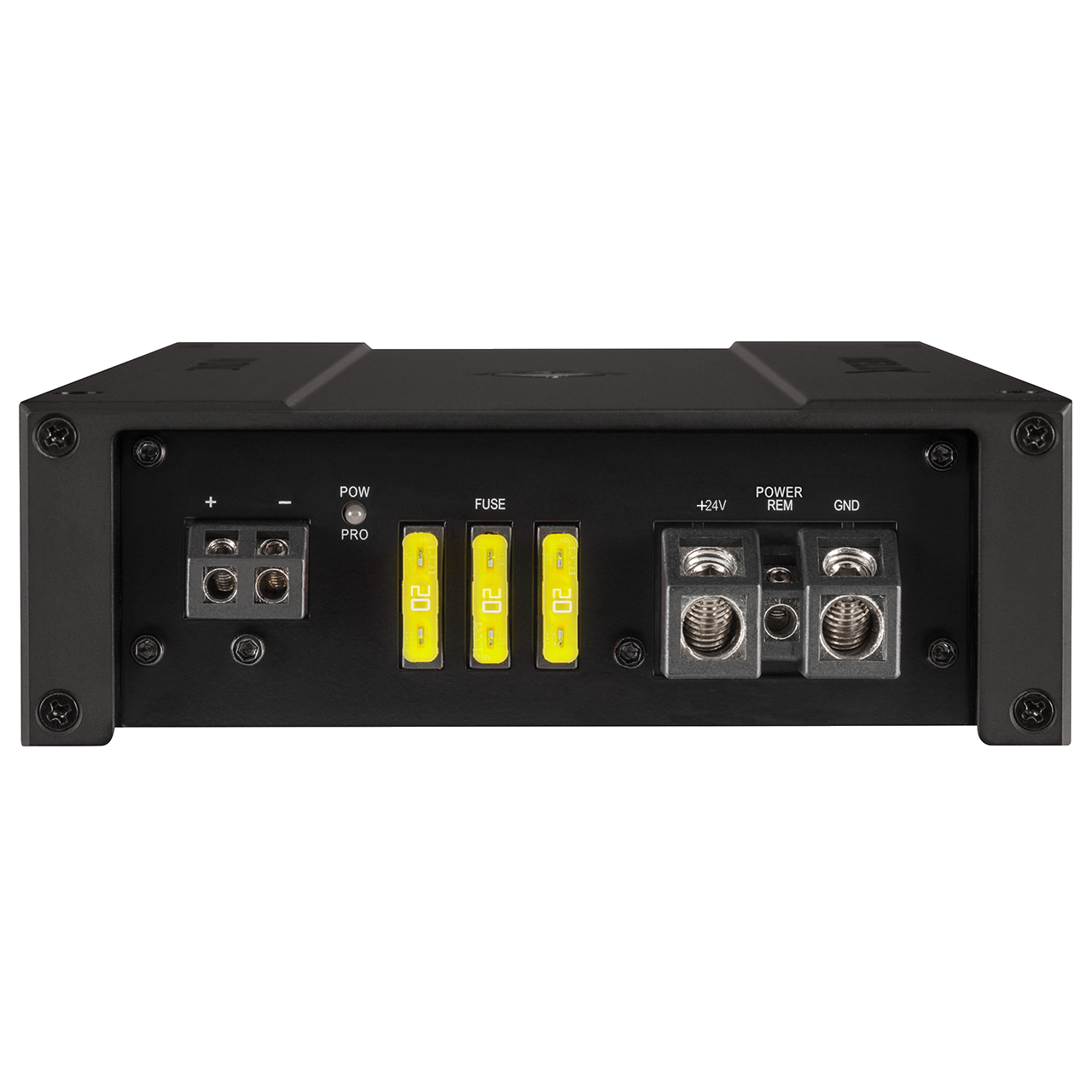

| Fuse | 3 x 20 A Maxi-fuse (APX) |
| Power rating | DC 24 V ⎓ 53 A max. |
| Additional features | Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control |
| Dimensions (H x W x D) | 50 x 320 x 154 mm / | 2.00 x 12.60 x 6.06” |
| Product properties | |
| Dimensions – width | < 350 mm, < 400 mm, < 450 mm |
| Dimensions – depth | < 200 mm, < 250 mm, < 400 mm, < 450 mm |
| Dimensions – height | < 50 mm, < 60 mm |
| Output power @ 4 Ohms | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt, > 200 Watt |
| Output power @ 2 Ohms | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt, > 200 Watt, > 400 Watt, > 600 Watt |
| Output power @ 1 Ohm | > 100 Watt, > 200 Watt, > 300 Watt, > 500 Watt, > 700 Watt |
| Load stability | 1 Ohm, 2 Ohm, 4 Ohm |
| Signal-to-noise ratio | > 80 dB, > 85 dB, > 90 dB, > 95 dB |
| THD | < 0,2% |
| Advanced features | ADEP highlevel input, Including remote control, Start-Stop capability, TwinPower Link |
What you are ordering
The exact HELIX model shown above, APEX catalogue SKU HA11103. Review the listed inputs, outputs, impedance and system requirements before ordering.
Technical information verified against the official Audiotec Fischer product page.
