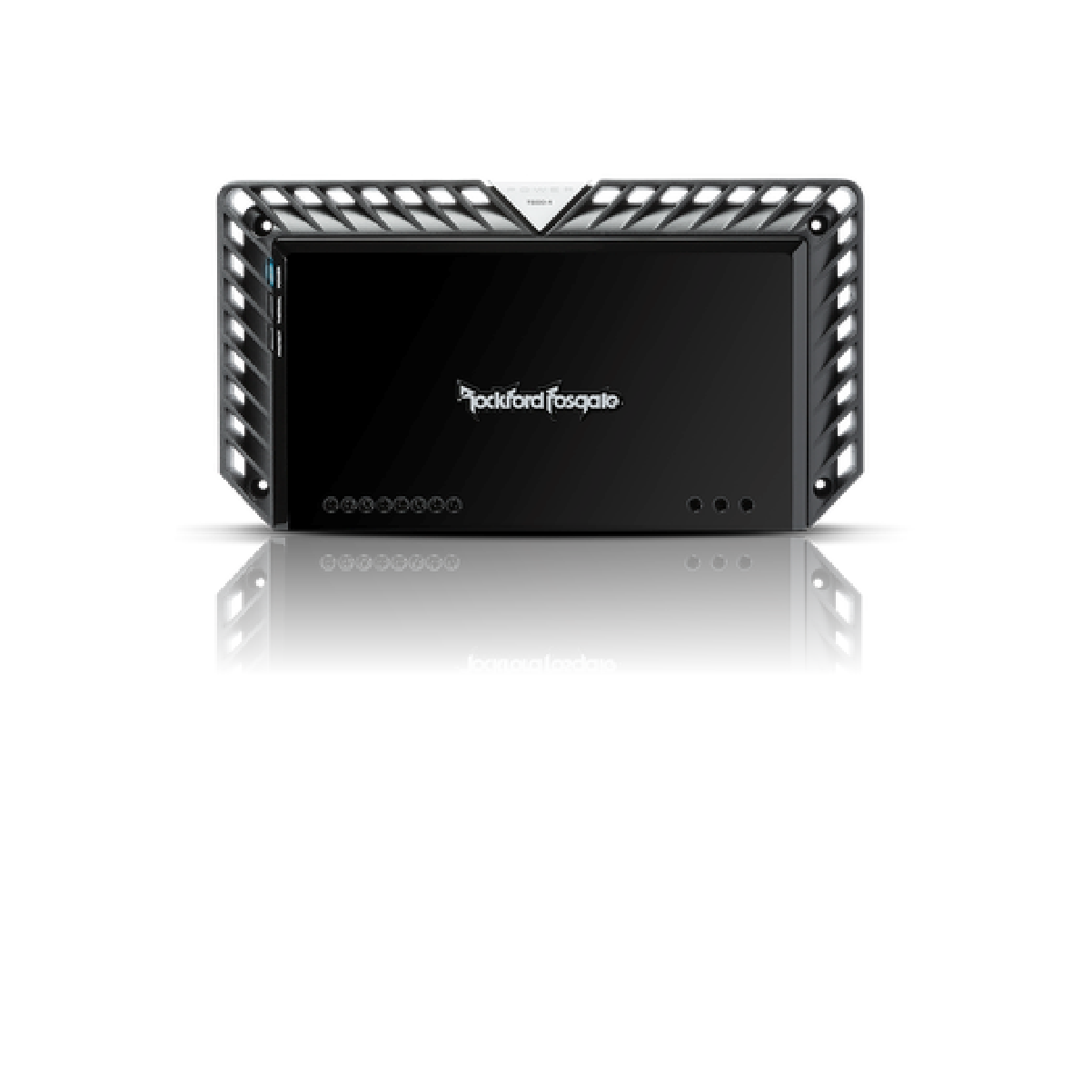

The T600-4 amplifier offers the perfect balance of power output and compact design required for high performance audio systems. The 4-channel configuration allows fine tuning adjustments between front stage component systems and rear surround speakers. The built-in crossover also allows the rear channels to be configured for running one or two subwoofers.
Features
- 2-Year Warranty
- 24dB/octave crossover
- MOSFET power supply
- MOSFET output stage
- 4 Gauge power/ground connectors
- Audiophile grade speaker connections
- RCA pass-thru outputs
- 2/4 channel input switch
Specifications
| Number of Channels | 4 |
|---|---|
| Total Power (Sum of Rated Power) | 600 Watts RMS |
| Rated Power (RMS Continuous Power) | 100 Watts x 4 @ 4-Ohm | 150 Watts x 4 @ 2-Ohm | 300 Watts x 2 @ 4-Ohm Bridged | 2-Ohm x 2 Bridged Stable |
| Dynamic Power (PVC/PowerCube®) | Front Channels | 139 Watts x 2 @ 4-Ohms 0° Res | 236 Watts x 2 @ 2-Ohms 0° Res | Rear Channels | 140 Watts x 2 @ 4-Ohms 0° Res | 236 Watts x 2 @ 2-Ohms 0° Res |
| Bridgeable | Yes |
| Frequency Response | 20Hz to 20kHz +/- 1dB |
| Input Sensitivity | 150 mV to 4 V |
| Circuit Topology Class | Class A/B |
| Efficiency (average) | 70% @ 4-Ohm | 64% @ 2-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: | <1.0% | 2-Ohm: | <1.0% |
| Signal Input | Front Low level: 1 RCA pair | Rear Low level: 1 RCA pair | Input Switch: 2CH / 4CH |
| Signal Output | Low Level: 1 RCA pair |
| Tone Controls | Front Channels – Punch EQ | Treble: 0dB to +12dB @ 12kHz | Bass: 0dB to +18dB @ 45Hz | Rear Channels – Punch EQ | Treble: 0dB to +12dB @ 12kHz | Bass: 0dB to +18dB @ 45Hz |
| Crossover Controls | Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth | Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth | Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth | Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth |
| Remote Controls | Optional Remote Punch EQ | (overrides rear channel built-in Punch EQ) |
| Visual Indicators | Power | Thermal | Protect |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Screw terminal barrier strip |
| Cooling | Convection |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse (not included) | 80 A |
| Average Current Draw (13.8V Music) | 40 A |
| Max. Current Draw (13.8V Sinewave) | 80 A |
| Suggested Alternator | 75 A |
| Dimensions (H x W x D) | 2.14 x 8.14 x 14.91 (in) | 5.42 x 20.68 x 37.86 (cm) |
| Shipping Weight | 12.00 Lbs. (5.44 Kg.) |
