Product overview
Maximum POWER for BMW sound concepts
The ultra-flat UP W8BMW-S subwoofers are playing extremely dynamically and punchy. Especially the exceptionally rigid fiberglass cone generates maximum sound pressure without distortions.
Maximum POWER for BMW sound concepts

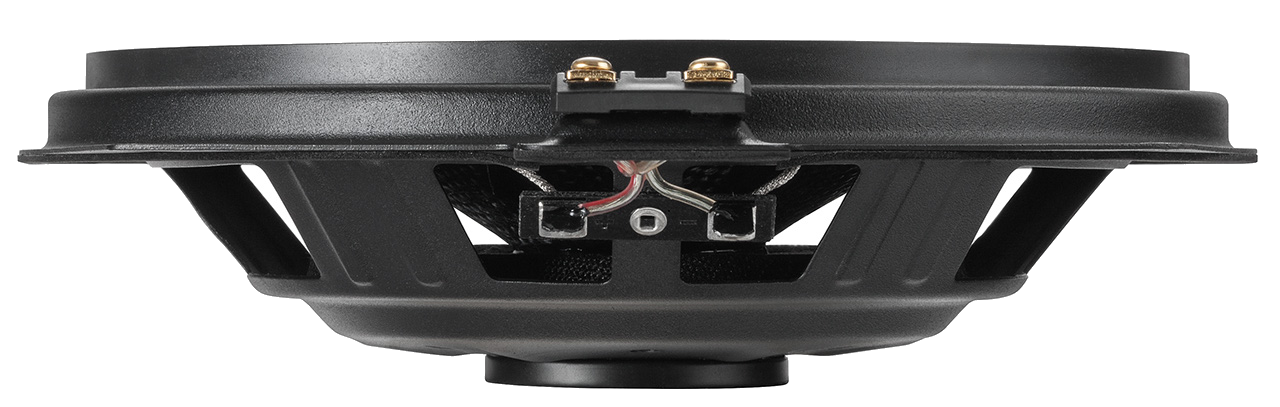

The BMW-specific baskets and connectors allow fast and easy installation into the original mounting positions of all BMW model ranges with under-seat subwoofers. Nevertheless these subwoofers are also perfectly qualified for universal applications. Thanks to the very low mounting depth, extremely compact sealed enclosures are no problem at all whereas the oversized 1.7” / 42.5 mm voice coil assures high power handling. With their 1 x 2 Ohms single voice coil the UP W8BMW-S are the perfect replacement for the original subwoofers of the BMW HiFi sound system. Additionally they are the perfect playmate for our MATCH Upgrade amplifier MATCH UP 7BMW and MATCH UP 7DSP.
Maximum POWER for BMW sound concepts
No matter if these subwoofers are used for a bass upgrade in your BMW or as supplier of low-frequencies in universal concepts, they will definitely add loads of powerful bass for musical enjoyment.
Key features
- 2 x 8” BMW upgrade subwoofer
- Fits perfectly into the original mounting positions under the front seats of all BMW model ranges with under-seat subwoofers
- Extremely stiff fiberglass cone for maximum sound pressure
- 1 x 2 Ohms impedance per woofer
- Oversized 42.5 mm / 1.7” voice coil for high power handling
- BMW connection cables for original BMW cable harness are included in delivery
- Perfectly combinable with the MATCH UPGRADE amplifiers MATCH UP 7BMW and UP 7DSP
- Also ideal for universal use in ultra-flat subwoofer constructions
Technical specifications
| Power RMS / max. | 200 / 400 Watts |
|---|---|
| Impedance | 1 x 2 Ω |
| DC resistance | 2.0 Ω |
| Resonance frequency | 49 Hz |
| Mechanical Q factor | 3.80 |
| Electrical Q factor | 0.61 |
| Total Q factor | 0.53 |
| Compliance | 210 µm/N |
| Equivalent air volume | 13.9 L |
| Force factor | B*I | 7.1 Tm |
| Efficiency 1 W / 1 m | 90 dB |
| Cone area | 214 cm² |
| Moving mass | 47.4 g |
| Cone material | Extremely stiff fiberglass cone |
| Mechanical resistance | 3.97 kg/s |
| Voice coil diameter | 42.5 mm |
| Voice coil winding height | 12.5 mm |
| Max. linear excursion | +/- 4.0 mm |
| Outer diameter | 239 mm / 9.41" |
| Installation diameter | 175 mm / 6.89" |
| Installation depth | 40 mm / 1.57" |
| Net volume (Sealed box) | 3 L |
| Lower limiting frequency (-3dB) (Sealed box) | 63 Hz |
| DSP settings (Sealed box) | – Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz / – Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB / – Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 – 100 Hz |
| Net volume (Vented box) | 12 L | 24 L |
| Port diameter | 60 mm / 2.36" | 80 mm / 3.15 |
| Port area | 28 cm² | 50 cm² |
| Port length | 25 cm / 9.84" | 20 cm / 3.94" |
| Port tuning frequency | Fb | 46 Hz | 46 Hz |
| Lower limiting frequency (-3dB) (Vented box) | 45 Hz | 45 Hz |
| DSP settings (Vented box) | – Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3 / – Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB / – Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 – 100 Hz |
What you are ordering
The exact MATCH model shown above, APEX catalogue SKU M130802. Review the listed inputs, outputs, impedance and system requirements before ordering.
Technical information verified against the official Audiotec Fischer product page.
