Product overview
The MW 8BMW-D subwoofers are not only the ideal upgrade for those who are dissatisfied with the bass response in their BMW, but particularly for those who want to realize unprecedented space saving installation concepts .
The BMW-specific baskets and Plug & Play connectors allow a fast and easy installation into the original mounting positions of all BMW model ranges with under-seat subwoofers.
Nevertheless, these subwoofers are also perfectly qualified for universal applications. Thanks to the very low mounting depth, extremely compact sealed enclosures are no problem at all whereas the oversized 1.7” / 42.5 mm voice coil assures high power handling.

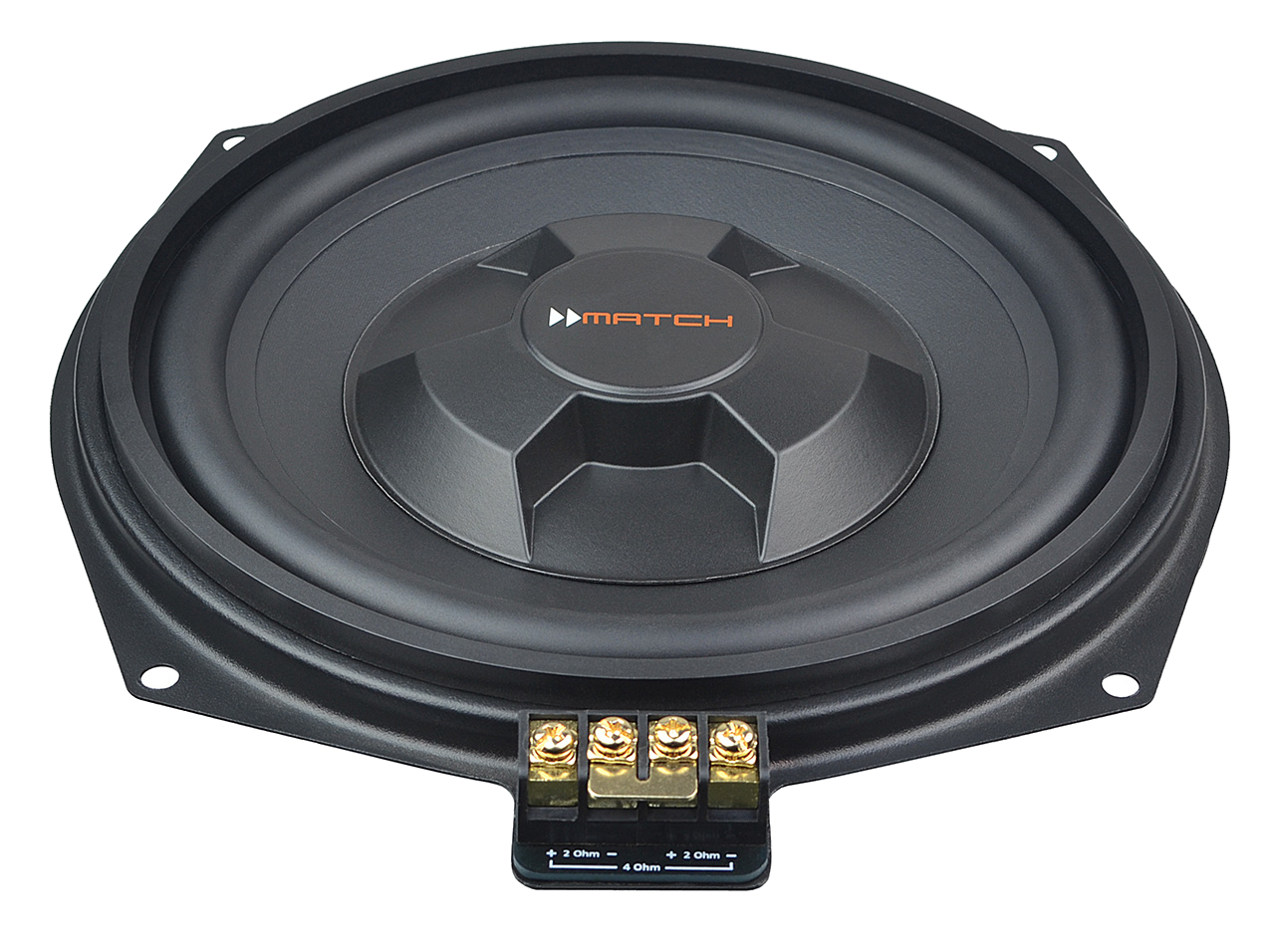

Furthermore, the special speaker connector with its gold-plated screw terminals allows two different configurations. If the metal bracket is mounted the woofer has an impedance of 1 x 4 Ohms – without the metal bracket each voice coil can be driven separately (in this case 2 x 2 Ohms) which is perfect for the combination with MATCH Plug & Play amplifiers.
No matter if these subwoofers are used as bass upgrade in your BMW or as problem-solver in small sub enclosures, they will definitely add loads of powerful bass for musical enjoyment.
Key features
- 8” subwoofers with very low mounting depth for shallow subwoofer designs and under-seat installation in BMW vehicles
- Allows to use extremely compact, sealed enclosures
- Oversized 42.5 mm / 1.7” voice coil for high power handling
- 2 x 2 Ohms impedance per woofer for most flexible connection options

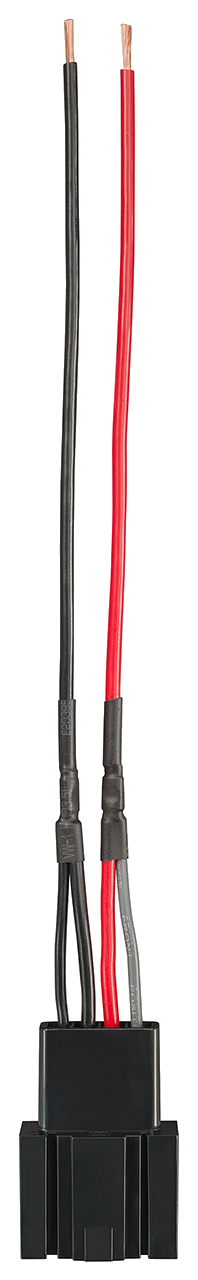

- Plug connectors for original BMW cable harness are included in delivery

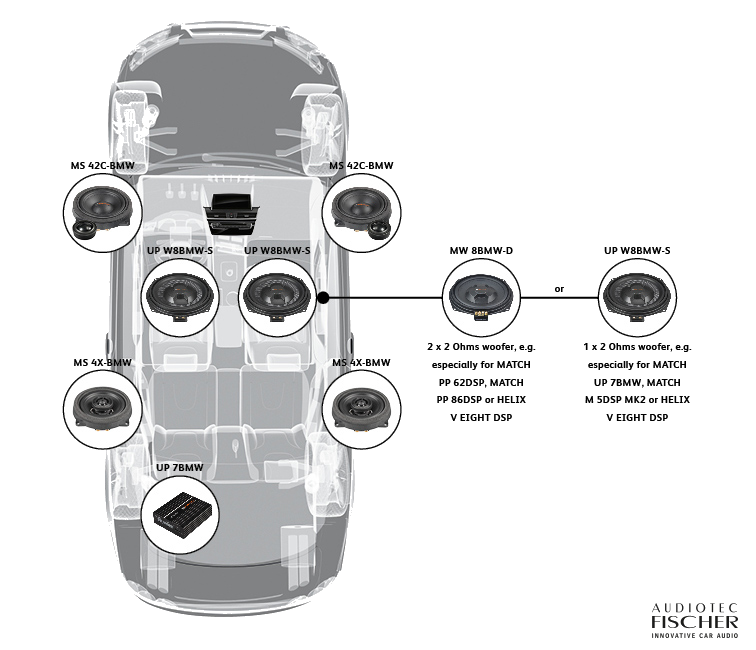

- Fits directly into the original mounting positions under the front seats of all BMW model ranges with under-seat subwoofers
- Also ideal for universal use in ultra-flat subwoofer constructions
Technical specifications
| Power RMS / max. | 200 / 400 Watts |
|---|---|
| Impedance | 2 x 2 Ω |
| DC resistance | 3.4 Ω |
| Resonance frequency | 46 Hz |
| Mechanical Q factor | 4.45 |
| Electrical Q factor | 0.59 |
| Total Q factor | 0.52 |
| Compliance | 272 µm/N |
| Equivalent air volume | 17.3 L |
| Force factor | B*I | 8.6 Tm |
| Efficiency 1 W / 1 m | 90 dB |
| Cone area | 214 cm² |
| Moving mass | 44.2 g |
| Cone material | Hand-scooped paper cone |
| Mechanical resistance | 0.74 kg/s |
| Voice coil diameter | 42.5 mm |
| Voice coil winding height | 12.5 mm |
| Max. linear excursion | +/- 4.0 mm |
| Outer diameter | 239 mm / 9.41" |
| Installation diameter | 175 mm / 6.89" |

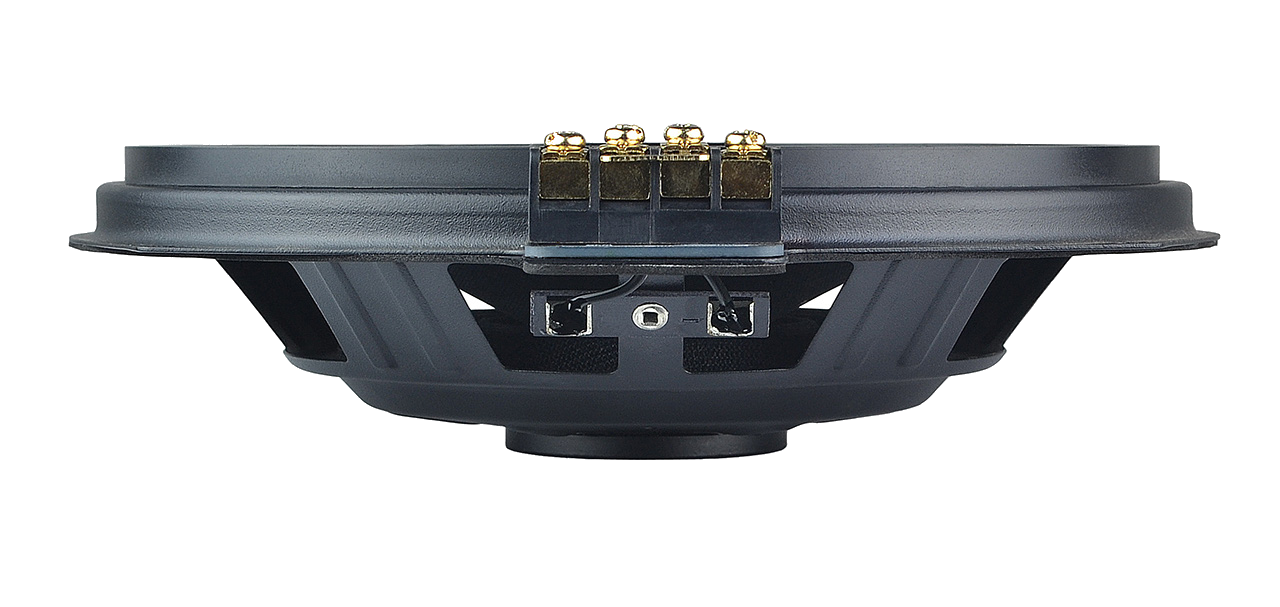

| Installation depth | 40 mm / 1.57" |
| Net volume (Sealed box) | 3 L |
| Lower limiting frequency (-3dB) (Sealed box) | 63 Hz |
| DSP settings (Sealed box) | – Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz / – Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB / – Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 – 100 Hz |
| Net volume (Vented box) | 12 L | 24 L |
| Port diameter | 60 mm / 2.36" | 80 mm / 3.15 |
| Port area | 28 cm² | 50 cm² |
| Port length | 25 cm / 9.84" | 20 cm / 3.94" |
| Port tuning frequency | Fb | 46 Hz | 46 Hz |
| Lower limiting frequency (-3dB) (Vented box) | 45 Hz | 45 Hz |
| DSP settings (Vented box) | – Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3 / – Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB / – Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 – 100 Hz |
What you are ordering
The exact MATCH model shown above, APEX catalogue SKU M130801. Review the listed inputs, outputs, impedance and system requirements before ordering.
Technical information verified against the official Audiotec Fischer product page.
