Product overview

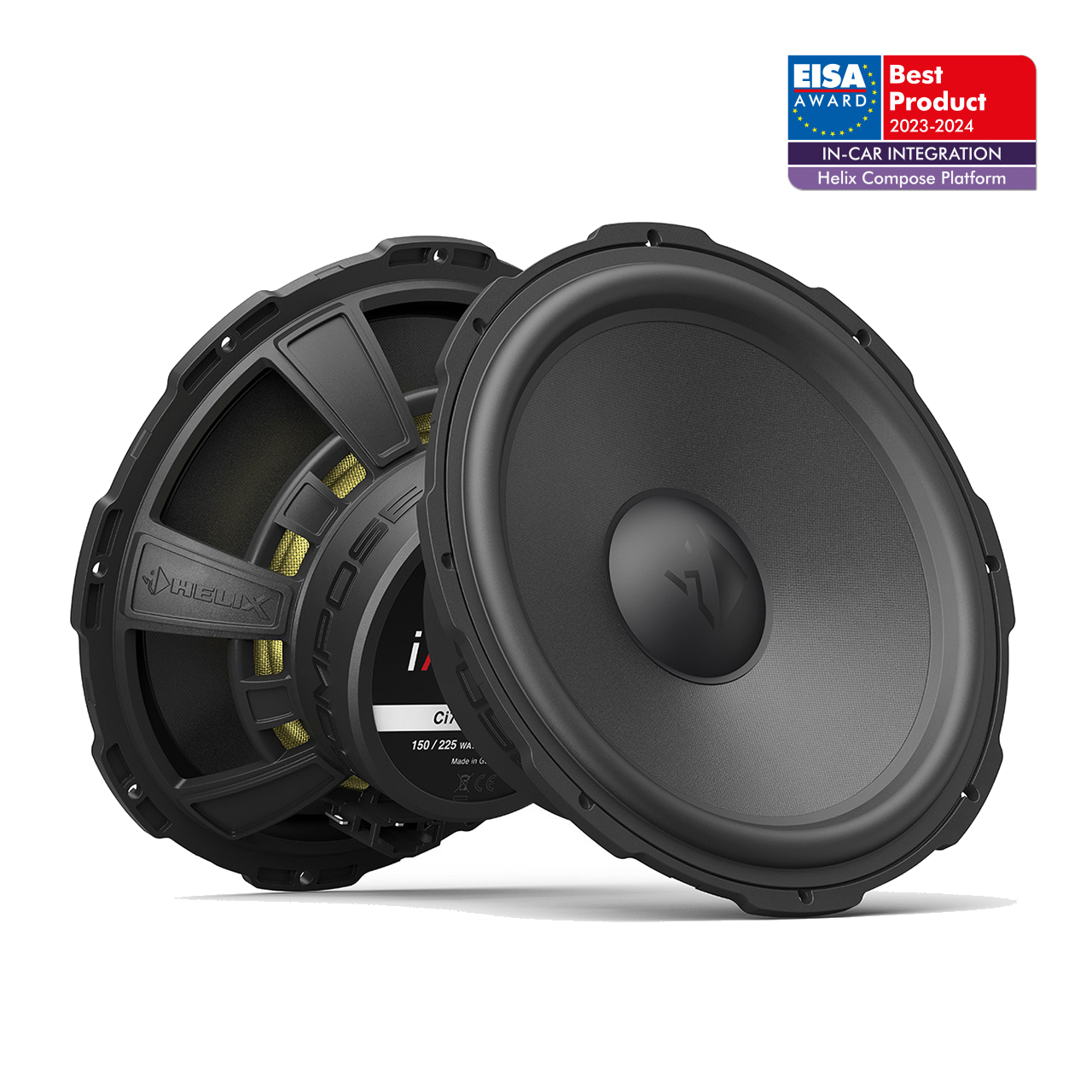

8 inch / 200 mm high-end woofer with 3 Ω impedance, FlexMount technology, novel UHD paper cone, mounting ring & grille
Key features
- 8” / 200 mm high-end woofer which combines outstanding sound performance with versatile physical integration options
- High efficiency and 3 Ohms technology for maximized power output of the amplifier
- Ultra High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
- Specially shaped rubber surround for high linear cone excursion
- Polyurethane dustcap for optimized frequency response in the upper midrange area
- Large 1.46” / 37 mm voice coil ensures minimum thermal compression and high power handling
- Compact dimensions with maximum performance – despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis
- Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
- Powerful magnet system for highest efficiency and extremely low distortion

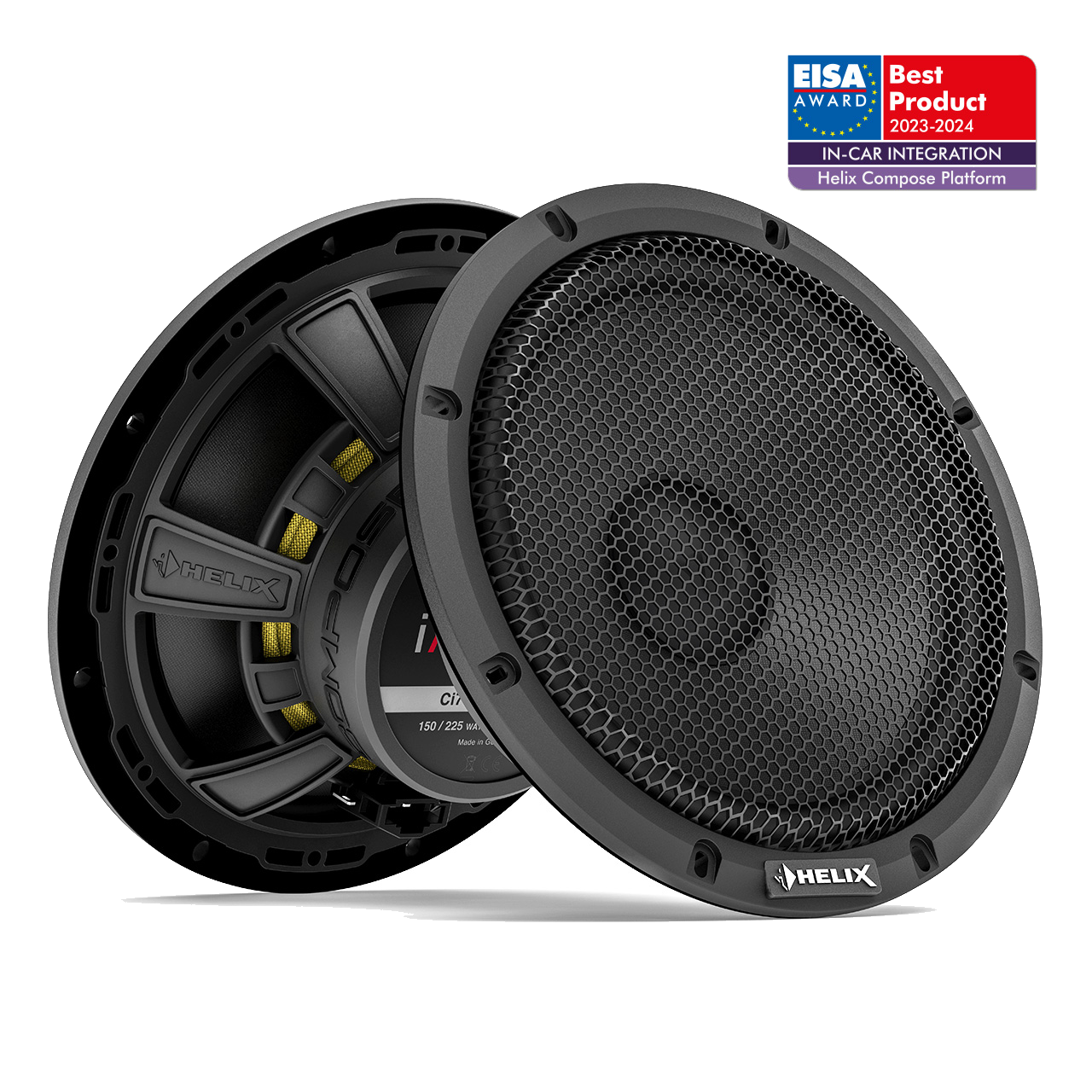

- Universal mounting ring with grille included in delivery
- Designed for the optionally available car-specific FlexMount200 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
- Designed for optionally available, car-specific WireKits which allow a non-destructive integration
- Made in Germany
Technical specifications
| Power handling RMS / Max. | P / | 150 / 225 Watts |
|---|---|
| Impedance | 3 Ω |
| DC resistance | 3.0 Ω |
| Frequency response | 35 Hz – 2,500 Hz |
| Resonance frequency | 52 Hz |
| Mechanical Q factor | 6.04 |
| Electrical Q factor | 0.78 |
| Total Q factor | 0.69 |
| Compliance | 370 µm/N |
| Equivalent air volume | 20.8 L |
| Force factor | B*I | 5.6 Tm |
| Sensitivity | 92 dB @ 2.83 V / 1m / 88 dB @ 1W / 1m |
| Cone area | 201 cm² |
| Moving mass | 25.6 g |
| Cone material | Ultra high damping (UHD) crafted paper cone |
| Mechanical resistance | 1.40 kg/s |
| Voice coil diameter | 37 mm |
| Voice coil winding height | 13.8 mm |
| Max. linear excursion | +/- 3.9 mm |
| Outer diameter | 195 mm / 7.68" |
| Outer diameter with universal mounting ring | 208.9 mm / 8.22" |
| Installation diameter | 173.5 mm / 6.83" |
| Installation depth | 65.8 mm / 2.59" |
| Features | ProConnect terminal, / FlexMount200, / universal mounting ring with grille |
What you are ordering
The exact HELIX model shown above, APEX catalogue SKU CI21802. Review the listed inputs, outputs, impedance and system requirements before ordering.
Technical information verified against the official Audiotec Fischer product page.
