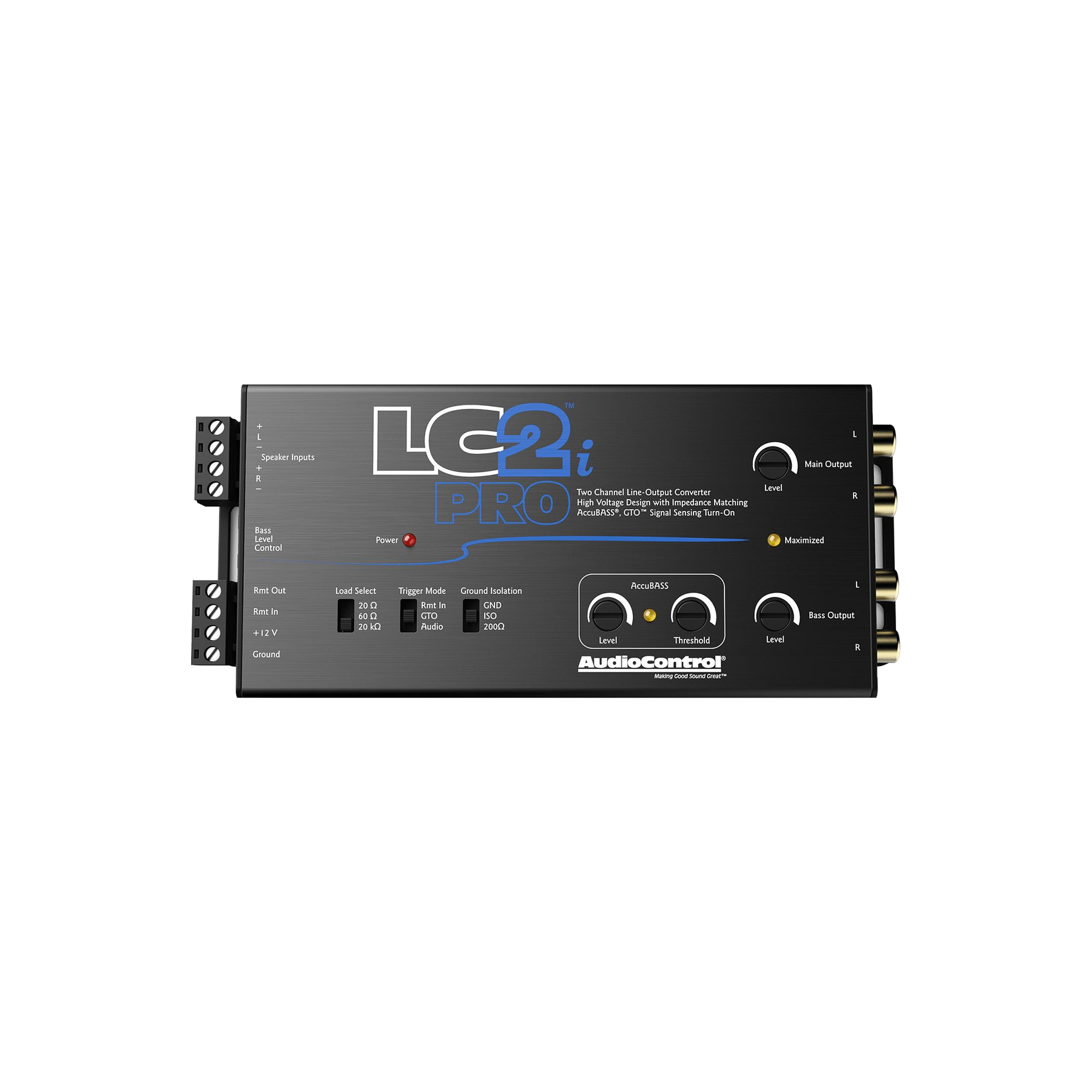

Product overview
The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS® and control your sub with the included ACR-1 level control.
Key features
- Two channels of active speaker level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTO TM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote included
- Compact design
Technical specifications
| INPUTS | |
|---|---|
| Speaker Level Input | 1 (2 channels) |
| Maximum Speaker Level Input | 40 Vrms / 400 W (20kΩ setting) |
| Input Impedance (selectable) | 20Ω, 60Ω, 20kΩ |
| OUTPUTS | |
| Preamp Outputs | 2 (2 channels main, 2 channels bass) |
| Maximum Output Level | 9.5Vrms/13V peak |
| Output Gain | +/- 12 dB |
| Output Impedance | 150Ω |
| PERFORMANCE | |
| Total Harmonic Distortion | 0.01% |
| Signal to Noise | >110 dB |
| Frequency Response | 20 Hz – 50 kHz ±1 dB |
| GENERAL | |
| Current Draw | 200 mA |
| Recommended Fuse Rating | 1 A |
| WEIGHTS & DIMENSIONS | |
| Dimensions | 6.9″L x 3″D x 1″H (including speaker connectors) |
| Weight | 0.75 lbs. (0.34 kg) |
| IN THE BOX | |
| To our California customers | Please view your Proposition 65 warning here . |
What you are ordering
The exact AudioControl model shown above, SKU LC2I-PRO. Review the listed inputs, outputs and system requirements before ordering.
Technical information verified against the official AudioControl product page.
