Product overview

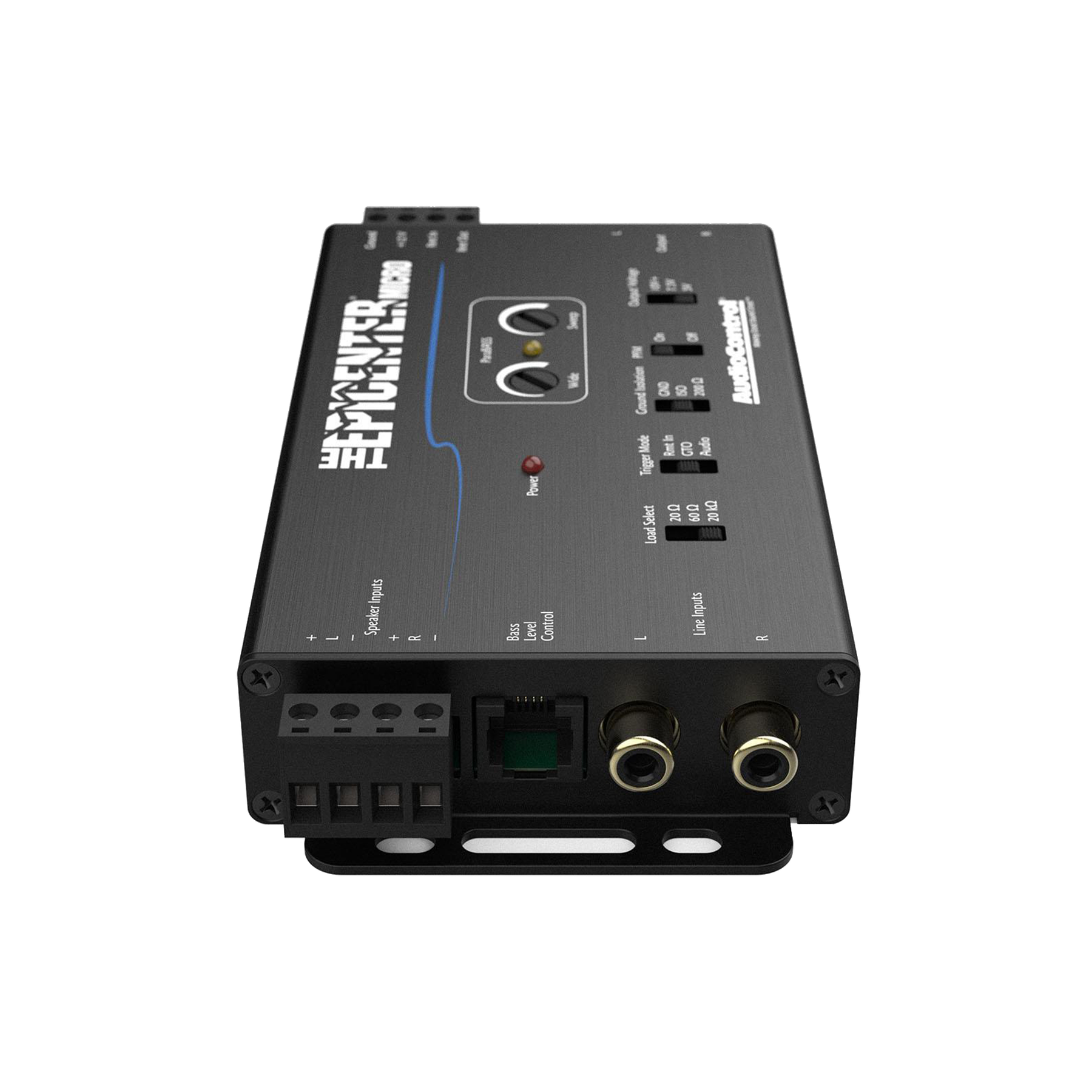

The EPICENTER Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The EPICENTER Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.
Key features
- Patented Digital Bass Restoration
- ParaBASS® Bass Shaping
- Speaker and Line Level Inputs
- Load Matching Circuit
- Multiple Trigger Modes

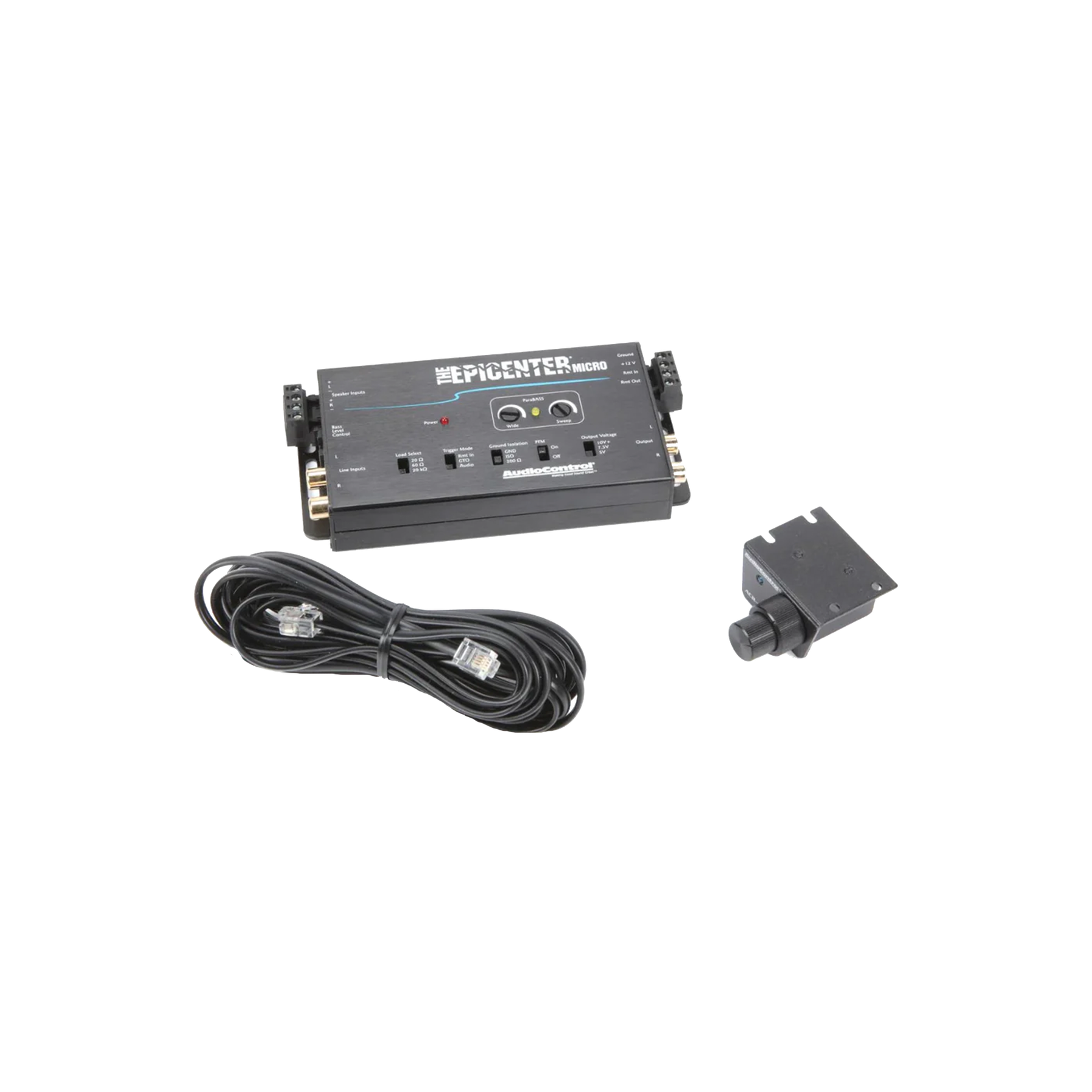

- ACR-4 Dual Knob Dash Mount Control Included
- Conformally Coated PCB for Increased Resistance to the Elements
Technical specifications
| INPUTS | |
|---|---|
| Speaker Level Input | 1 (2 channels) |
| Maximum Speaker Level Input | 40 Vrms / 400 W (20kΩ setting) |
| Speaker Level Input Impedance (selectable) | 20Ω, 60Ω, 20kΩ |
| Line Level Input | 1 (2 channels) |
| Line Level Input Impedance | 7kΩ |
| OUTPUTS | |
| Preamp Outputs | 1 (2 channels) |
| Maximum Output Level | 9.5Vrms/13V peak |
| Output Impedance | 150Ω |
| PERFORMANCE | |
| Total Harmonic Distortion | 0.03% |
| Signal to Noise | >105 dB |
| Frequency Response | 10 Hz – 22 kHz ±1 dB |
| GENERAL | |
| Current Draw | 300 mA |
| Recommended Fuse Rating | 1 A |
| WEIGHTS & DIMENSIONS | |
| Dimensions | 5.9″L x 3″D x 1″H |
| Weight | 0.6 lbs. (0.27 kg) |
| IN THE BOX | |
| To our California customers | Please view your Proposition 65 warning here . |
What you are ordering
The exact AudioControl model shown above, SKU EPICENTERM. Review the listed inputs, outputs and system requirements before ordering.
Technical information verified against the official AudioControl product page.
