Product overview

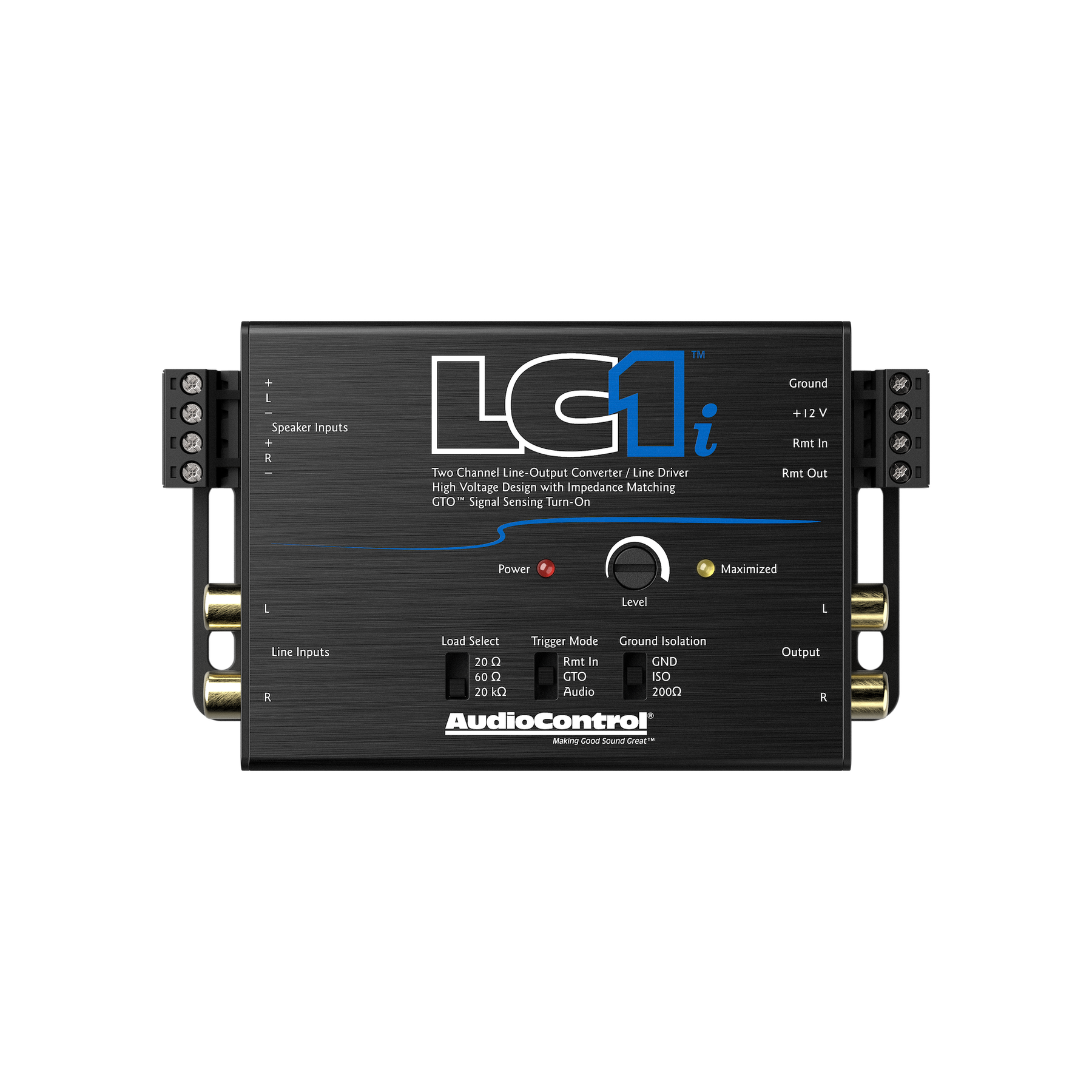

The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal.
Key features
- Two channels of active speaker level inputs (up to 40V input handling)
- Two channels of line level inputs
- Load Selection Switch
- GTO TM Signal Sensing
- Ground Isolation Switch
- Compact design
Technical specifications
| INPUTS | |
|---|---|
| Speaker Level Input | 1 (2 channels) |
| Maximum Speaker Level Input | 40 Vrms / 400 W (20kΩ setting) |
| Speaker Level Input Impedance (selectable) | 20Ω, 60Ω, 20kΩ |
| Line Level Input | 1 (2 channels) |
| Line Level Input Impedance | 7kΩ |
| OUTPUTS | |
| Preamp Outputs | 1 (2 channels) |
| Maximum Output Level | 9.5Vrms/13V peak |
| Output Gain | +/- 12 dB |
| Output Impedance | 150Ω |
| PERFORMANCE | |
| Total Harmonic Distortion | 0.01% |
| Signal to Noise | >110 dB |
| Frequency Response | 20 Hz – 50 kHz ±1 dB |
| GENERAL | |
| Current Draw | 120 mA |
| Recommended Fuse Rating | 1 A |
| WEIGHTS & DIMENSIONS | |
| Dimensions | 4.8″L x 3″D x 1″H (including speaker connectors) |
| Weight | 0.55 lbs. (0.25 kg) |
| IN THE BOX | |
| To our California customers | Please view your Proposition 65 warning here . |
What you are ordering
The exact AudioControl model shown above, SKU LC1i. Review the listed inputs, outputs and system requirements before ordering.
Technical information verified against the official AudioControl product page.
