Product overview

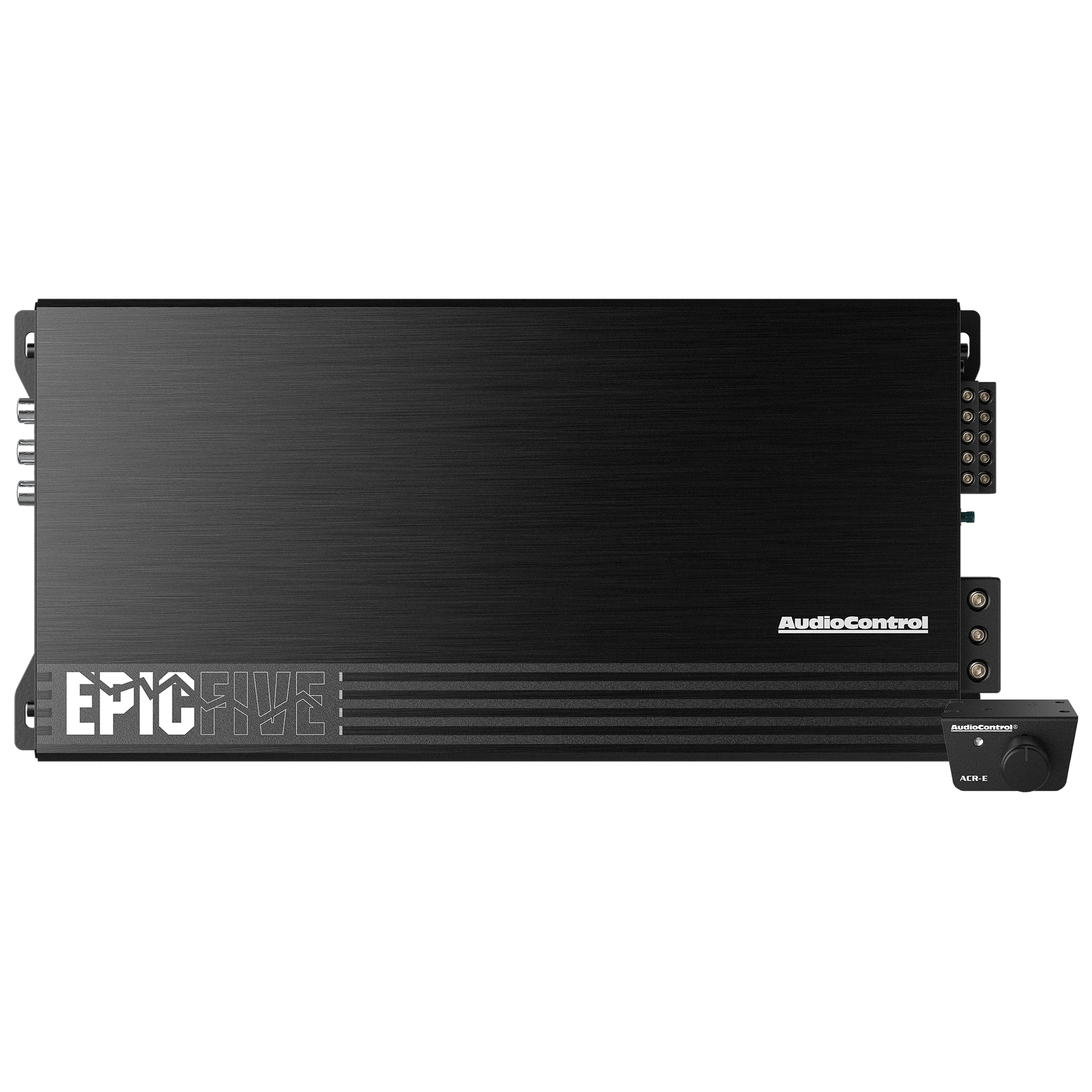

The AudioControl EPIC Series 5-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, ensuring maximum power output while maintaining efficiency. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.
Technical specifications
| INPUTS | |
|---|---|
| Line-Level Inputs | 500mV – 12V RMS |
| WEIGHTS & DIMENSIONS | |
| DIMENSIONS | 6.1″ W x 13.35″ L x 2.01″ H |
| PERFORMANCE | |
| Frequency Response (+/- 1 dB) | 10 Hz – 24 kHz (Ch1/2/3/4) 12 Hz – 181 Hz (Ch5) |
| S/N Ratio | 92.1 dBa, Ref 75 Watts @ 4 ohms |
| Power / Ground Wire Gauge | 4 AWG |
| Recommended Fuse Rating | 150 Amps |
| High Pass Filter | 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz |
| Low Pass Filter | 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz |
| Subsonic Filter | 12 dB/octave Linkwitz-Riley, Off to 50 Hz |
| EPIC Boost | Frequency Center: 45 Hz, Gain: 0 to 12 dB |
| Speaker Terminal Wire Gauge | 8 AWG |
| IN THE BOX | |
| To our California customers | Please view your Proposition 65 warning here . |
What you are ordering
The exact AudioControl model shown above, SKU EPICFIVE. Review the listed inputs, outputs and system requirements before ordering.
Technical information verified against the official AudioControl product page.
