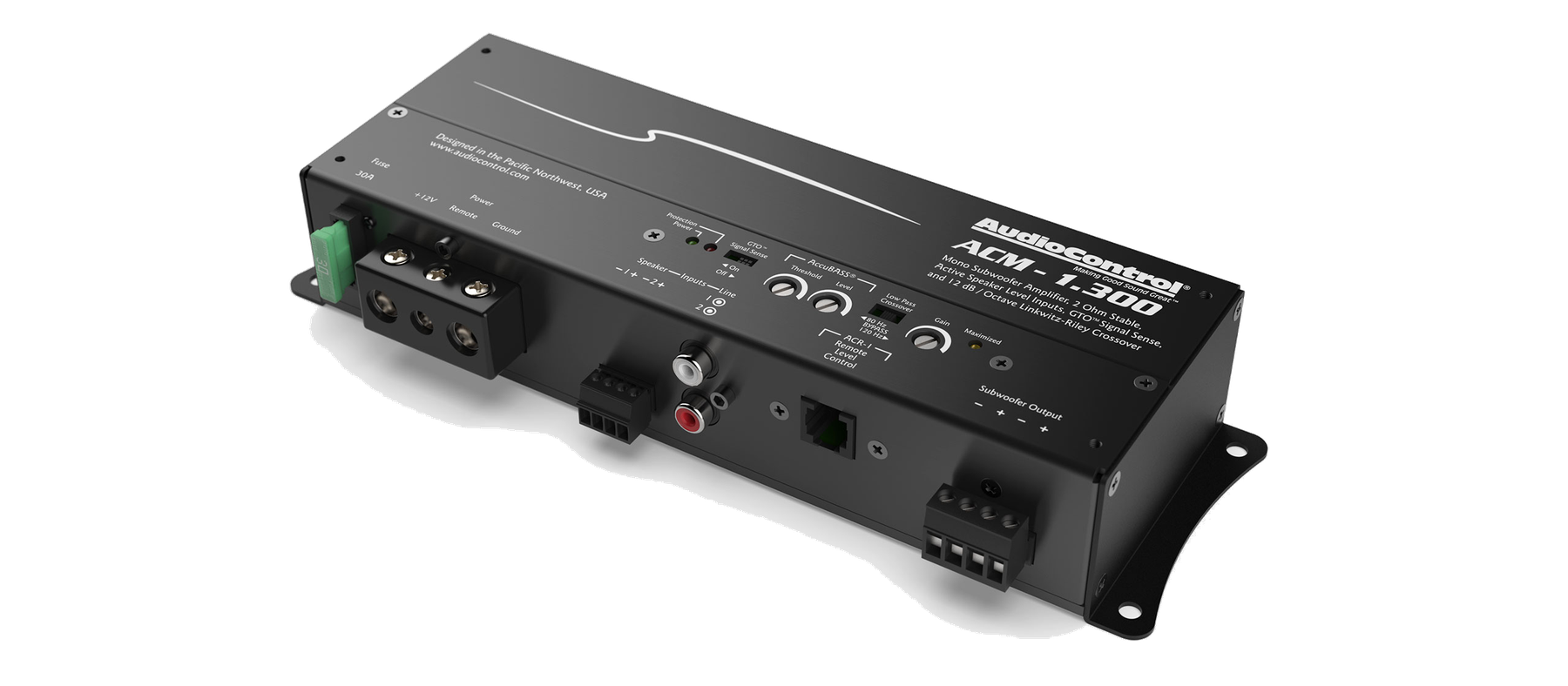

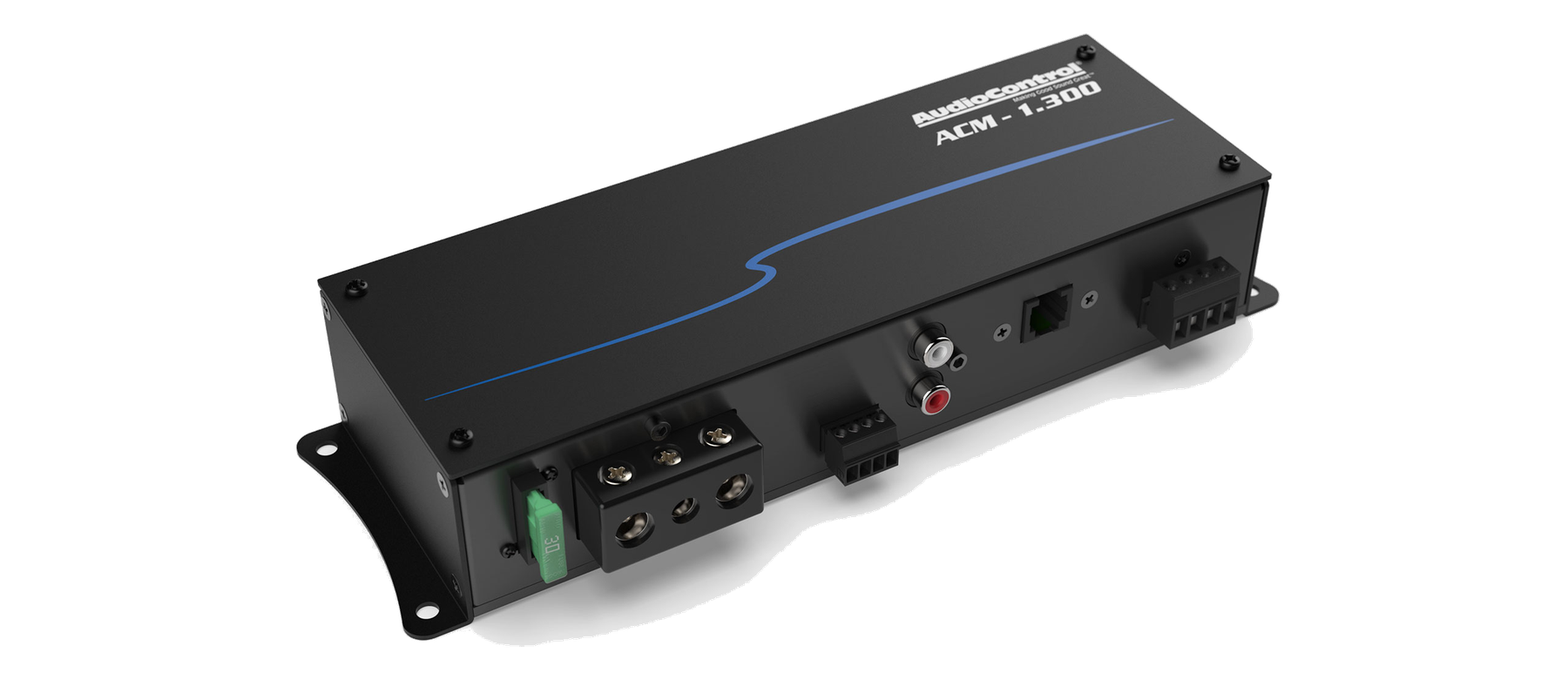

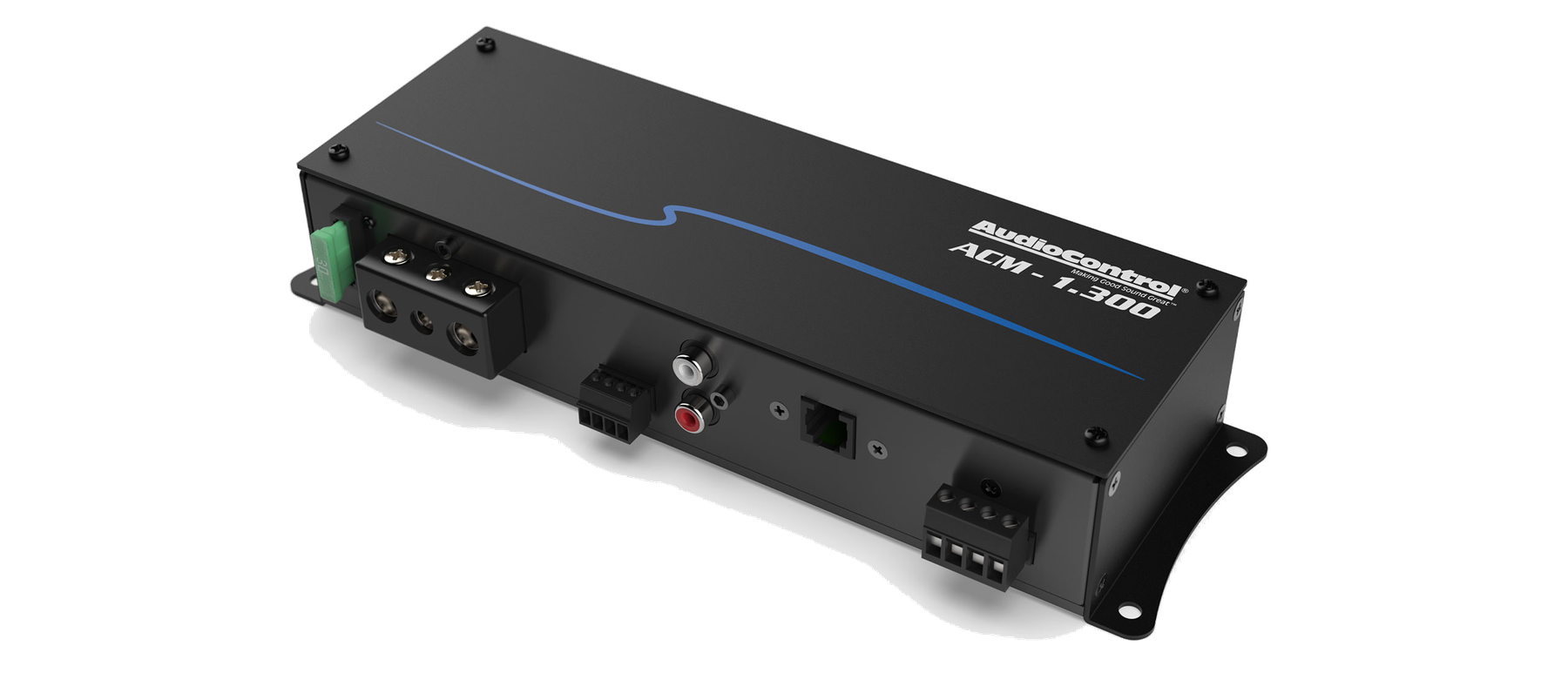

Product overview
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation. Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.
Key features
- 300 watts @ 2 ohms
- 175 watts @ 4 ohms
- AccuBASS® Processing
- GTO TM Signal Sense
- Active speaker-level inputs for OEM integration
- RCA Line Inputs
- Linkwitz-Riley Crossover
- Optional ACR-1 remote level control
- Reversible Cover Plate
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
Technical specifications
| INPUTS | |
|---|---|
| Preamp Inputs | 2 Balanced |
| Preamp Input Voltage Range | 500 mV – 6 Vrms |
| Speaker Level Inputs | 2 |
| Speaker Level Input Voltage Range | 3 V – 40 Vrms |
| OUTPUTS | |
| Rated Continuous (RMS) Power at 14.4V | 4 Ω – 175 W RMS 2 Ω – 300 W RMS |
| Outputs | 4 Ω – 175 W RMS |
| Outputs | 2 Ω – 300 W RMS |
| PERFORMANCE | |
| Frequency Response | 10 Hz – 22 kHz |
| Signal to Noise | 102 dBA, Ref 175 W @ 4 Ohm |
| THD+N | < 0.01% |
| Power / Ground Wire Gauge | 10 to 4 AWG wire |
| Fuse Rating | 1 x 30 A |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass |
| PFM Subsonic Filter | 24 Hz |
| WEIGHTS & DIMENSIONS | |
| Dimensions | 9.4″W x 3.0″D x 1.75″H |
| Weight | 2.1 lbs. (0.95 kg) |
What you are ordering
The exact AudioControl model shown above, SKU ACM-1.300. Review the listed inputs, outputs and system requirements before ordering.
Technical information verified against the official AudioControl product page.
