Product overview

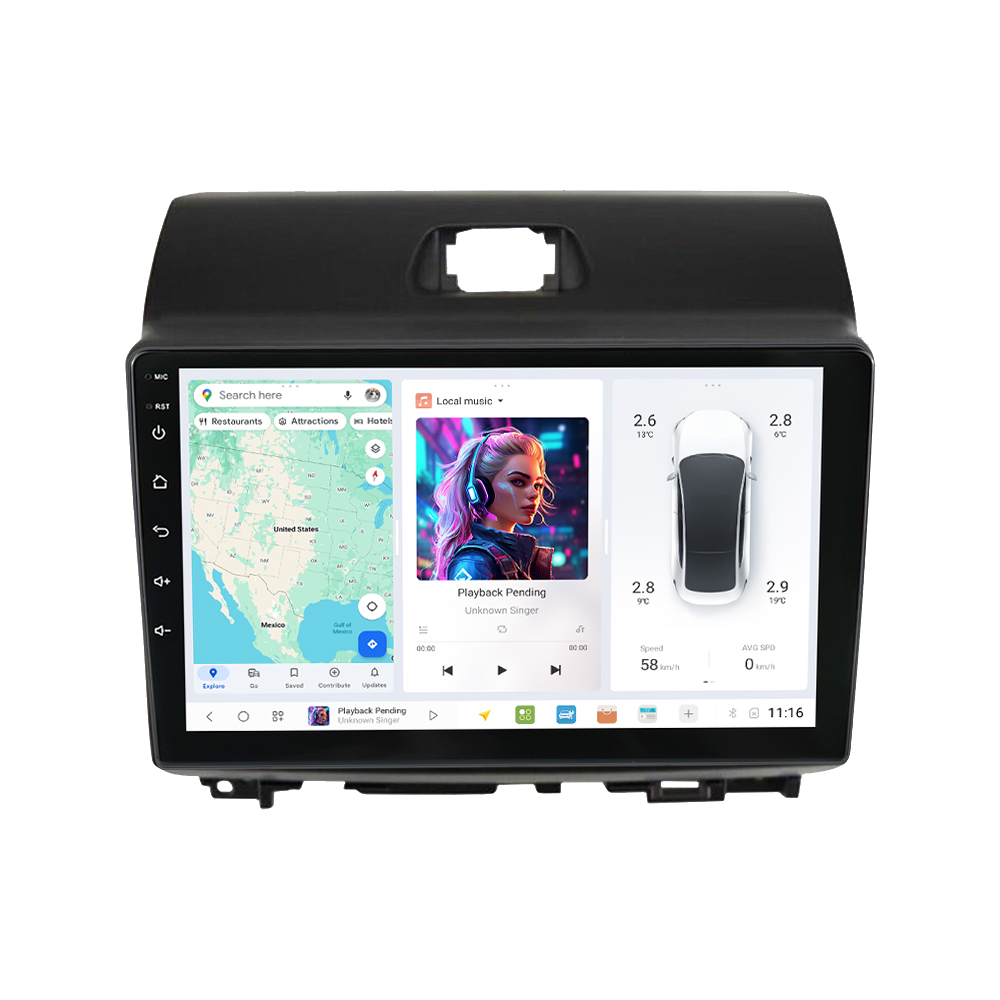

Vehicle-specific DUDUAUTO Android head unit for Ray (2011-2017). Select the available performance tier and buy the exact configuration shown in this listing.
Vehicle compatibility
| Vehicle make | Kia |
|---|---|
| Compatible models | Ray |
| Model years | 2011-2017 |
| Smartphone integration | Wired and wireless Apple CarPlay and Android Auto |
| Product type | Vehicle-specific Android head unit |
| Available tiers | DUDU3, DUDU5, DUDU7 |
Choose your DUDU tier
| Tier | Processor | RAM | Storage | Display | Audio processor | Power amplifier | Smartphone integration | Network |
|---|---|---|---|---|---|---|---|---|
| DUDU3 | 8 Core -UIS8581 | 4GB | 64GB | 9” – 1280*720 | TM2313 (ASP) | YD7388 | Support wired + wireless CarPlay / Android Auto | 4G LTE + Wi-Fi |
| DUDU5 | 8 Core – UIS7862 | 4GB | 64GB | 9.5” – 1280*720 | ROHM32107 (DSP) | TDA7851 | Support wired + wireless CarPlay / Android Auto | 4G LTE + Wi-Fi |
| DUDU7 | 8 Core – UIS7870 (Customized version – A76 2.7Ghz, 6nm process) | 6GB | 64GB | 9.5” – 2K (2000*1200) | AKM7739 (DSP) – VELVET Audio Technology | TDA7808 – Digital Enhanced Class AB Power Amplifier | Support wired + wireless CarPlay / Android Auto | 4G LTE + Wi-Fi |
Full technical specifications
| DUDU3 | |
|---|---|
| Model | DUDU3 |
| RAM | 4GB |
| Storage | 64GB |
| Processor | 8 Core -UIS8581 |
| Storage type | EMMC |
| GPS | 3 Mode – L1, E1, G1 |
| Microphone | Condenser MIC |
| USB | USB 2.0 x 2 |
| Audio processor | TM2313 (ASP) |
| Power amplifier | YD7388 |
| Amp | None |
| Filter Capacitance | 2200μF |
| Radio tuner | 8035 FM Radio |
| Audio outputs | RCA 2.1 Channel Output |
| Bluetooth chipset | Built- in BT |
| Operating system | DUDU OS |
| Android version | Android 10 API=29 |
| Display | 9” – 1280*720 |
| Smartphone integration | Support wired + wireless CarPlay / Android Auto |
| Network | 4G LTE + Wi-Fi |
| 360 Camera’s | Not Supported |
| Voice control | Optional software licence required |
| Optional accessories | DVR, Front and Rear Camera’s, TPMS and more. |
| DUDU5 | |
| Model | DUDU5 |
| RAM | 4GB |
| Storage | 64GB |
| Processor | 8 Core – UIS7862 |
| Storage type | EMMC |
| GPS | 3 Mode – L1, E1, G1 |
| Microphone | Condenser MIC |
| USB | USB 2.0 x 3 |
| Audio processor | ROHM32107 (DSP) |
| Power amplifier | TDA7851 |
| Amp | None |
| Filter Capacitance | 6800μF |
| Radio tuner | TDA7708 FM/AM Radio |
| Audio outputs | Optical + Coaxial + USB DAC, RCA 2.1 Channel Output |
| Bluetooth chipset | Realtek 8761 |
| Operating system | DUDU OS |
| Android version | Android 10 API=29 |
| Display | 9.5” – 1280*720 |
| Smartphone integration | Support wired + wireless CarPlay / Android Auto |
| Network | 4G LTE + Wi-Fi |
| 360 Camera’s | Supported with the optional 360 interface and camera kit |
| Voice control | Optional software licence required |
| Optional accessories | DVR, Front and Rear Camera’s, TPMS and more. |
| DUDU7 | |
| Model | DUDU7 |
| RAM | 6GB |
| Storage | 64GB |
| Processor | 8 Core – UIS7870 (Customized version – A76 2.7Ghz, 6nm process) |
| Storage type | UFS – Up to 1700MB/s R (128G+) |
| GPS | Dual Band 7 Mode – L1, L5, B1, B2a, E1, G1, E5a |
| Microphone | Digital Noise cancelling MIC |
| USB | USB 3.2 Gen1*1 (Type-C), USB 2.0*3 |
| Audio processor | AKM7739 (DSP) – VELVET Audio Technology |
| Power amplifier | TDA7808 – Digital Enhanced Class AB Power Amplifier |
| Amp | 5532*3 |
| Filter Capacitance | 10000μF |
| Radio tuner | TDA7708 FM/AM Radio |
| Audio outputs | Optical + Coaxial + USB DAC, RCA 5.1 Channel Output |
| Bluetooth chipset | BT 5.0 Qualcomm 3031 (Supports aptX HD protocol) |
| Operating system | DUDU OS |
| Android version | Android 13 API=33 |
| Display | 9.5” – 2K (2000*1200) |
| Front and Rear camera Recording | Supported |
| Smartphone integration | Support wired + wireless CarPlay / Android Auto |
| Network | 4G LTE + Wi-Fi |
| 360 Camera’s | Supported with the optional 360 interface and camera kit |
| Voice control | Supported |
| Optional accessories | DVR, Front and Rear Camera’s, TPMS and more. |
What you are ordering
The exact vehicle-specific android head unit configuration shown above, SKU DUDU-P2911. Optional cameras, TPMS, DVR and other accessories are not included unless they are explicitly named in the selected option.
Fitment and specification information checked against the exact DUDUAUTO ZA product listing.
