Product overview
One-touch remote control
The CONDUCTOR PRO combines design and functionality in perfect harmony. With a single control knob, you get all key functions of your DSP-based sound system at your fingertips – from volume control, input source selection and setup switching to the operation of an optionally installed Bluetooth ® HD Extension Card. Building on the proven operating logic of the CONDUCTOR, the CONDUCTOR PRO adds an even more premium material concept and refined haptics.
Premium design you can see – and feel
The CONDUCTOR PRO is purpose-built around a high-quality look and a highly controlled operating feel. Its aluminium housing underlines the premium character while providing excellent robustness and long-term durability. The ergonomically shaped knob features a rubber-touch side surface, offering noticeably more grip and enabling precise, confident operation – even while driving. As a result, the CONDUCTOR PRO blends seamlessly into modern, high-end vehicle interiors both visually and in terms of feel.
Tailor-made for your needs
The CONDUCTOR PRO adapts flexibly to your requirements, whether as a simple subwoofer remote or as a control unit for more complex system configurations. Even setups with multiple playback zones and different volume levels can be handled comfortably: music for the parents in the front while an audio story plays for the kids in the rear.
All signal sources under control
With the CONDUCTOR PRO, you can manage all connected signal sources in no time. Use your smartphone as a digital media source, for example, and intuitively control playback (play / pause, track forward / back) and volume in combination with the optional Bluetooth ® Extension Card.
Sound setup switching to match your taste
Manage different sound profiles on your DSP – depending on your personal taste and demands – and enjoy your music with consistently optimized sound quality.
Key features
- Independent control of up to 4 individual volumes such as Master, Digital, HEC/AUX, Rear Attenuation or Subwoofer including full system mute
- Selectable volume ranges of 60 dB, 24 dB, 12 dB
- Selectable volume step size of 1 dB or 0.5 dB
- Individually configurable LED color for each volume menu
- Sound Setup switching with up to 10 presets and signal source selection
- Optional Bluetooth ® module control including play, pause, track navigation and activation of pairing*
- ToneControl – flexible sound tuning for highs and lows
- Precise boost or cut in the range from −6 dB to +6 dB
- 12 x RGB-LEDs for visual feedback
- Wide color space with over 16 million colors
- Configurable brightness and automatic dimming
- Seamless and secure installation

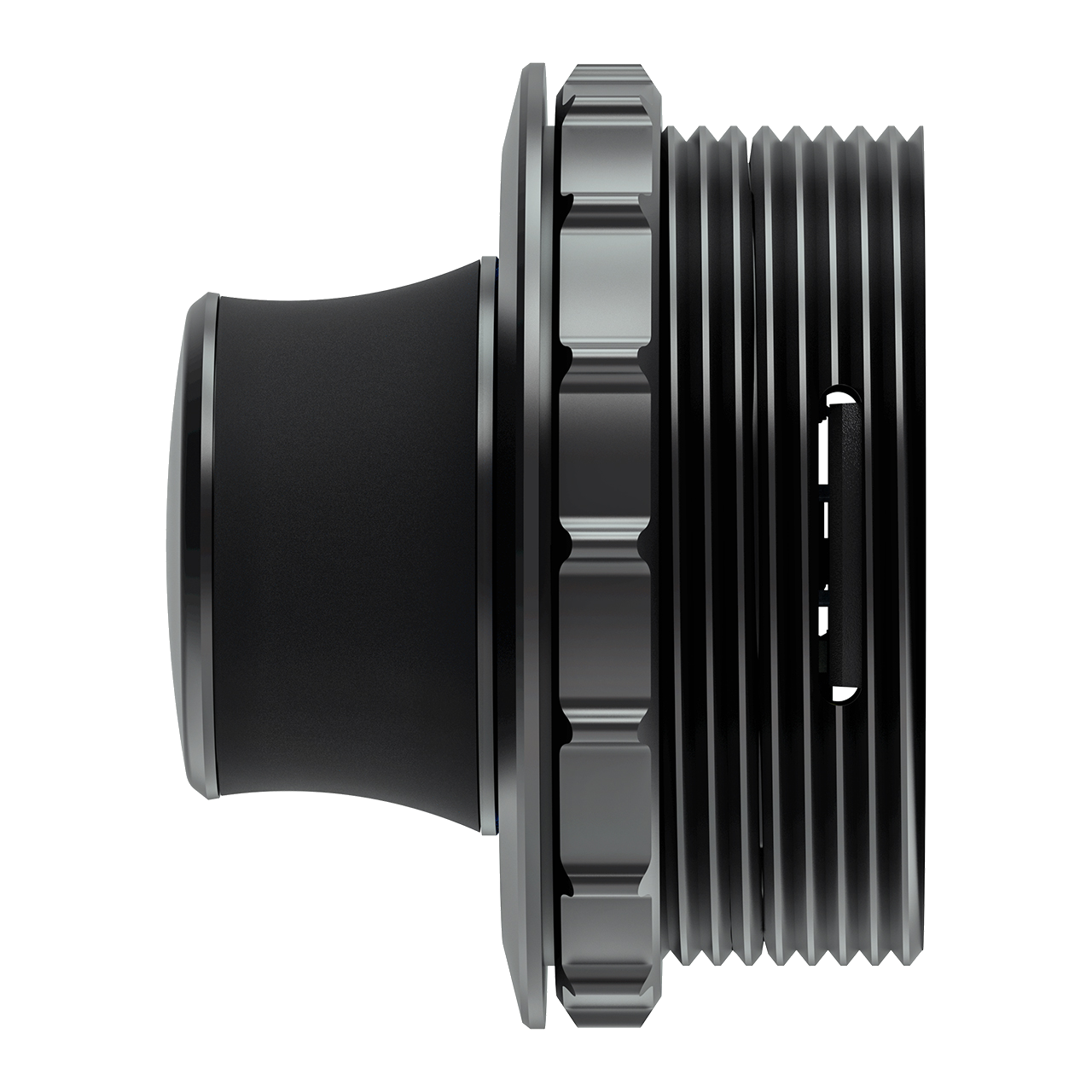

- Rear mounting ring and fine thread for secure fastening
- Flush mount installation with Ø 1. 58” / 40 mm hole cut-out
Technical specifications
| Technical data | |
|---|---|
| Housing | Aluminum housing with ergonomic rotary knob with rubber-touch surface on the side |
| Hardware | Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processor |
| Connection | SCP (Smart Control Port) / no separate power supply required |
| Cable length | 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable |
| Dimensions (Ø x H) | Ø 46 x 36 mm / Ø 1.81 x 1.42” |
| Installation depth | 18 mm / 0.71" |
What you are ordering
The exact HELIX model shown above, APEX catalogue SKU H424476. Review the listed inputs, outputs, impedance and system requirements before ordering.
Technical information verified against the official Audiotec Fischer product page.
