Product overview
The sound power house – extremely powerful and stunning sound quality

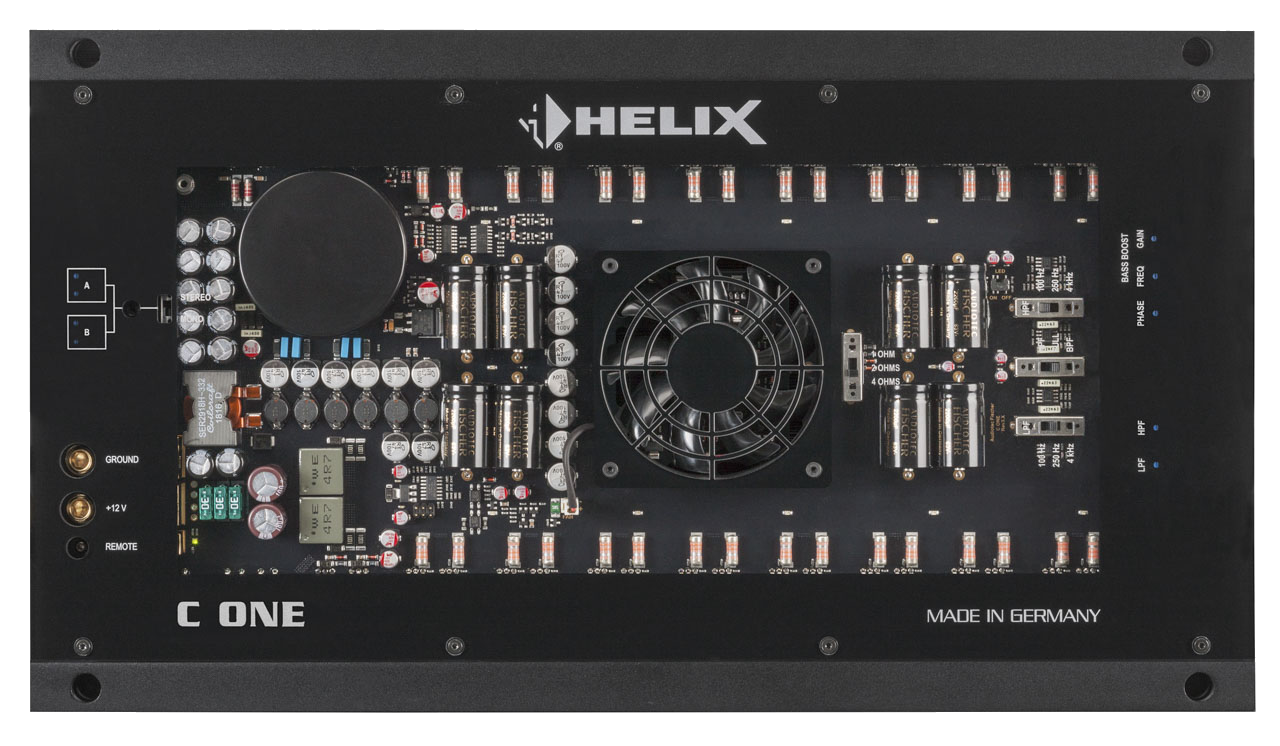

The C ONE is a high-end 1-channel amplifier that is able to drive even powerful subwoofers to the max. The ultra low-noise and ultra low-distortion Class A driver stage feeds a total of 32 hand-selected MOSFET power transistors, resulting in an incredible damping factor of 1,000 for relentless control of every loudspeaker.
Additionally the intelligent regulation of the power supply assures stable conditions for the output stages and therefore phenomenal output power that is almost independent of the cars battery voltage. And for even more output power, two C ONE amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.
Despite its impressive output power, the C ONE is by no means a pure subwoofer amplifier. Thanks to an extended frequency response up to 80 kHz and an architecture that has been designed down to the last detail for ultimate sound quality, the C ONE is also a perfect buddy for heavy-duty mid-woofers in audiophile system concepts.
In combination with the optionally available digital input module HDM 1, the C ONE demonstrates the perfect transition to the digital era. The HDM 1 accepts digital audio signals up to 96 kHz sampling rate via its optical input followed by cutting-edge BurrBrown D/A converters with 32 Bit resolution that transform the signals back to the analog domain. Therefore the C ONE is absolutely future-proof and perfectly prepared for the combination with our digital signal processors.
Key features
- Extremely powerful Class AB amplifier with up to 1,100 Watts RMS @ 1 Ohm – a perfect match for all 2 x 2 Ohms subwoofers connected in parallel
- Also usable as an ultra broadband amplifier with exceptional sound quality – ideal for High Resolution Audio
- Ultra low-noise and distortion-free power amp drivers in Class A technology
- Enormous damping factor of 1,000 @ 4 Ohms for maximum speaker control
- Optionally available HELIX Digital Input Module (HDM) to extend the amplifier with an optical digital input in SPDIF format
- Regulated DC / DC switching power supply with Start-Stop capability down to 6V supply voltage
- Microprocessor-based monitoring of amplifier status including temperature-dependent fan control
- Integrated, active crossover with highpass, lowpass, bandpass, bass boost and phase control
- TwinPower Link for connecting two amplifiers in bridged mode
- Cutting-edge BurrBrown D/A converters with 32 Bit resolution in combination with the optional HDM 1 module
- Massive 24-carat gold-plated power and speaker terminals
- Quad-layer PCB with extra-solid 70μ copper traces for lowest possible losses and SMD (Surface Mounted Device) manufacturing technology
Technical specifications
| Technical data | |
|---|---|
| Output power RMS ≤ 1% THD+N | Normal operation | (One amplifier) |
| – @ 4 Ohms | 1 x 525 Watts |
| – @ 2 Ohms | 1 x 830 Watts |
| – @ 1 Ohm | 1 x 1,100 Watts |
| – bridged @ 4 Ohms | – |
| – bridged @ 2 Ohms | – |
| Max. output power per channel* | Up to 1,320 Watts RMS @ 1 Ohm |
| Amplifier technology | Class AB |

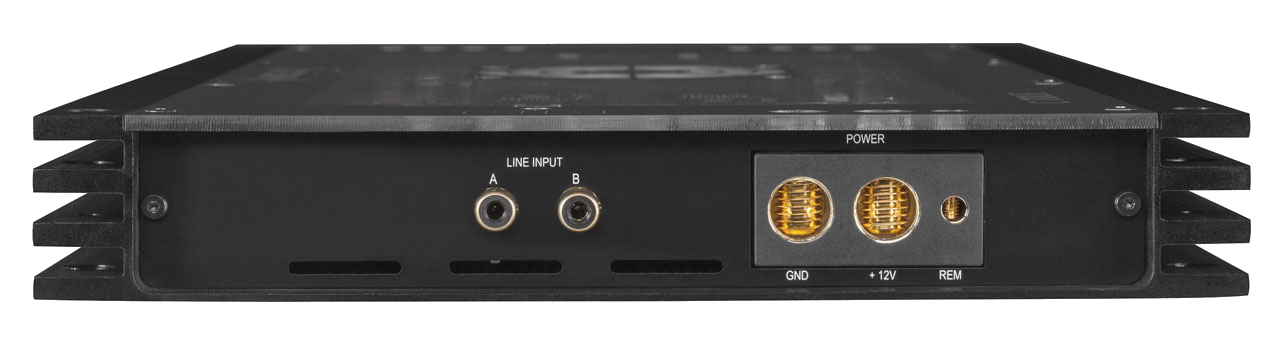

| Inputs | 2 x RCA / Cinch | 1 x Remote In | 1 x Remote control input | 1 x TwinPower Link |
| Input sensitivity | RCA / Cinch 0.5 – 8 Volts |
| Input impedance RCA / Cinch | 7.5 kOhms |
| Input impedance highlevel | – |
| Outputs | 1 x Speaker output |
| Output voltage RCA / Cinch | – |
| Signal converter for digital input | – |
| Frequency response | 10 Hz – 80,000 Hz |
| Bass boost | 0 – 9 dB / 40 Hz – 120 Hz |
| Highpass | 15 Hz – 4,000 Hz adjustable |
| Lowpass | 15 Hz – 4,000 Hz adjustable |
| Bandpass | 15 Hz – 4,000 Hz adjustable |
| Subsonic | – |
| Phase | 0 – 180° adjustable |
| Slope high- / lowpass | 12 dB/Oct. |
| Slope subsonic / lowpass | – |
| Signal-to-noise ratio digital input | – |
| Signal-to-noise ratio analog input | 120 dB (A-weighted) |
| Distortion (THD) | < 0.006 % |
| Damping factor | > 1000 |
| Operating voltage | 9 – 16 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 2400 mA |
| Operating temperature range | -40 °C to +70 °C |
| Fuse | 3 x 30 A LP-Mini-fuse (APS) |
| Additional features | Active, adjustable crossover, bass boost, HDM slot, input mode switch, TwinPower Link, Start-Stop capability |
| Dimensions (H x W x D) | 37.1 x 430 x 240 mm / | 1.46 x 16.93 x 9.45" |
| Product properties | |
| Dimensions – width | < 300 mm, < 350 mm, < 400 mm, < 450 mm |
| Dimensions – depth | < 200 mm, < 250 mm, < 300 mm, < 350 mm, < 400 mm, < 450 mm |
| Dimensions – height | < 60 mm |
| Output power @ 4 Ohms | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt, > 200 Watt |
| Output power @ 2 Ohms | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt, > 200 Watt, > 400 Watt, > 600 Watt |
| Output power @ 1 Ohm | > 100 Watt, > 200 Watt, > 300 Watt, > 500 Watt, > 700 Watt |
| Load stability | 1 Ohm, 2 Ohm, 4 Ohm |
| Signal-to-noise ratio | > 80 dB, > 85 dB, > 90 dB, > 95 dB, > 100 dB, > 105 dB |
| THD | < 0,1 %, < 0,2% |
| Advanced features | HDM module, High-Res audio, Regulated power supply, Start-Stop capability, TwinPower Link |
What you are ordering
The exact HELIX model shown above, APEX catalogue SKU HA11106. Review the listed inputs, outputs, impedance and system requirements before ordering.
Technical information verified against the official Audiotec Fischer product page.
