Product overview

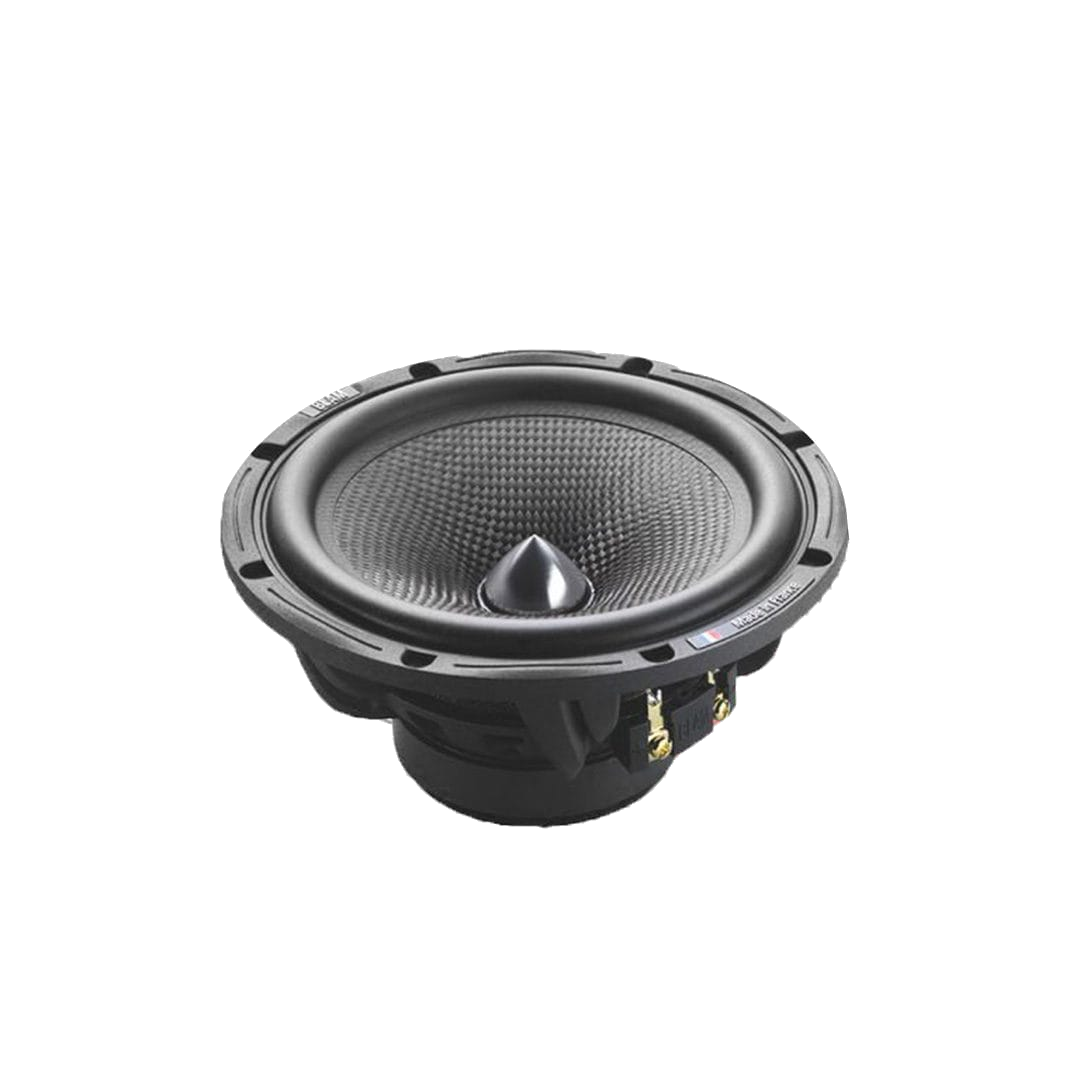

The S 165.80+ kit is a 2-way component system designed to deliver precise and dynamic sound reproduction. It includes two 165 mm (6.5″) woofers, two 20 mm (3/4″) soft dome tweeters, and four external crossovers for precise frequency adjustment.
Key product details
- Components: 2 165 mm woofers (WS 6.80) and 2 20 mm tweeters (TS 20 HR)
- Frequency response: 60 Hz – 7 kHz (woofer) / 2.5 kHz – 43 kHz (tweeter)
- Sensitivity: 94.3 dB (woofer) / 88.3 dB (tweeter)
- Impedance: 2 Ω (woofer) / 5 Ω (tweet)
- External filters: BFT 01 and BFW 01 – 4.5 kHz and 3.5 kHz crossovers
- Hi-fidelity 2Ω 165mm/ 6/2’’ component speaker system passive with crossovers
- WS 6.80 HIGH SENSITIVITY WOOFER
- BFT01 HIGH QUALITY CROSSOVER
- High pass 12 dB/octave crossover
- BFW01 HIGH QUALITY CROSSOVER
- Low pass 6 dB/octave crossover
Technical specifications
| Verified product specifications | |
|---|---|
| Maximum power | 120 W |
| Nominal power | 60 W |
| Frequency response | 60 Hz – 7 kHz |
| Sensitivity | 94,3 dB |
| Impedance | 2 Ω |
| Frequency response | 2.5 KHz – 43 kHz |
| Sensitivity | 88,3 dB |
| Impedance | 5 Ω |
| Official product specifications | |
| Frequency Response | 60 Hz – 7 kHz (woofer) / 2.5 kHz – 43 kHz (tweeter) |
| Sensitivity | 94.3 dB (woofer) / 88.3 dB (tweeter) |
| Impedance | 2 Ω (woofer) / 5 Ω (tweet) |
What you are ordering
The exact BLAM model shown above, SKU BLAM-S16580. Match power, impedance, dimensions and included components to your planned system before checkout.
Technical information verified against the official BLAM product page.
