Product overview

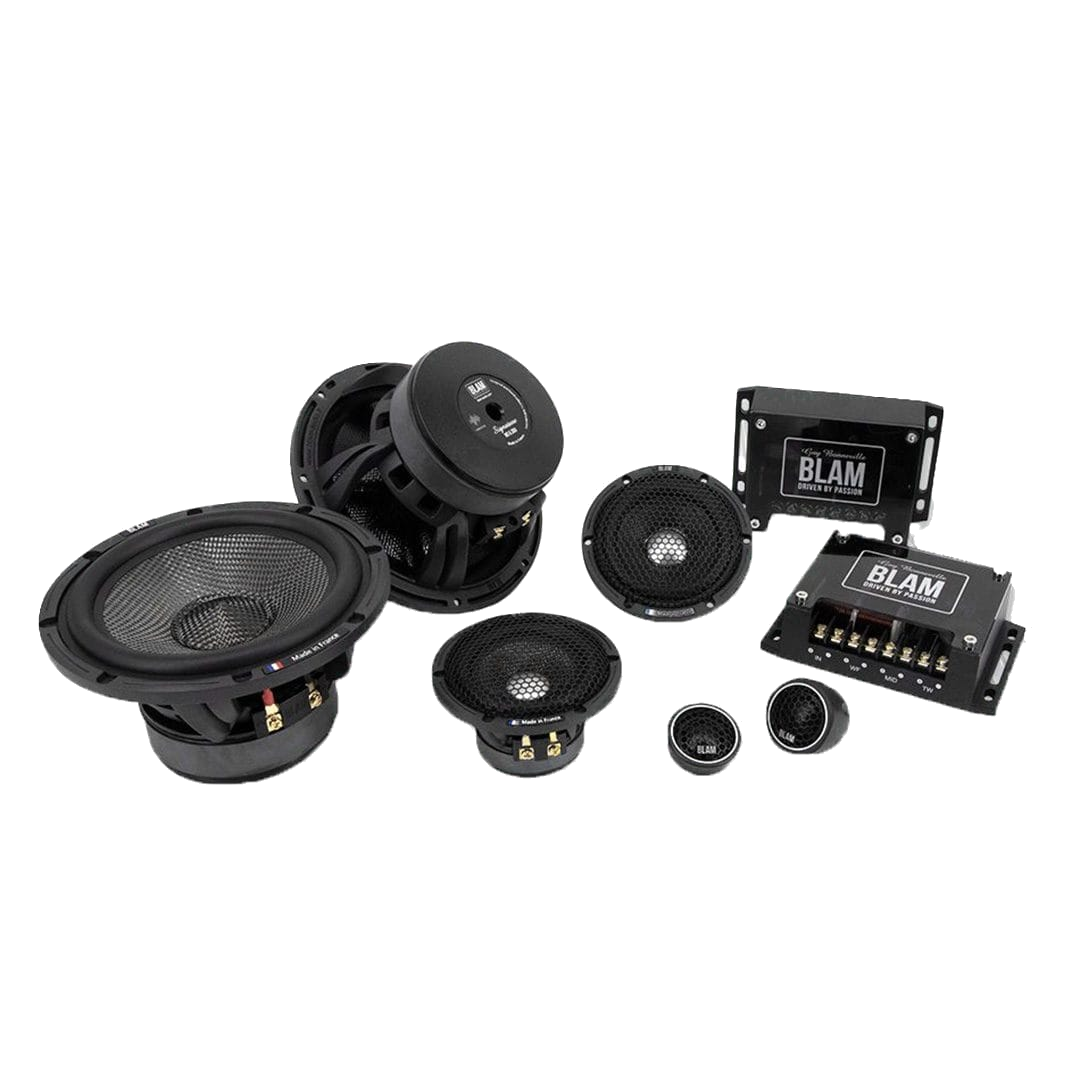

The S 165.300 kit is a 3-way (2+1) system designed for full and precise sound reproduction. It includes two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers, and two 20 mm (3/4″) soft dome tweeters, along with two external crossovers with tweeter level adjustment (+3 / 0 / −3 dB) for optimal balance.
Key product details
- Components: 2 165 mm woofers (WS 6.100), 2 80 mm midranges (MS 3.55), 2 20 mm tweeters (TS 20 HR)
- Frequency response: 50 Hz – 5 kHz (woofer) / 200 Hz – 27 kHz (midrange) / 2.5 kHz – 43 kHz (tweeter)
- Sensitivity: 93.2 dB / 88 dB / 88.3 dB
- Impedance: 2 Ω / 3 Ω / 5 Ω
- BFX 03 external crossovers – crossovers: 300 Hz & 10 kHz, tweeter adjustment +3 / 0 / −3 dB
- 165mm components 3 ways speakers passive with crossovers
- Extended frequency 80 mm (3”) midrange
- BFX 03 AUDIOPHILE GRADE CROSSOVER
- 6/12/12 dB / octave 2+1 ways audiophile grade crossover
Technical specifications
| Verified product specifications | |
|---|---|
| Maximum power | 250 W |
| Nominal power | 125 W |
| Frequency response | 50 Hz – 5 kHz |
| Sensitivity | 93.2 dB |
| Impedance | 2 Ω |
| Maximum power | 100W |
| Nominal power | 25W |
| Frequency response | 200 Hz – 27 kHz |
| Sensitivity | 88 dB |
| Impedance | 3Ω |
| Frequency response | 2.5 kHz – 43 kHz |
| Sensitivity | 88.3 dB |
| Impedance | 5 Ω |
| Crossover Point | woofer/midrange: 300 Hz |
| Official product specifications | |
| Frequency Response | 50 Hz – 5 kHz (woofer) / 200 Hz – 27 kHz (midrange) / 2.5 kHz – 43 kHz (tweeter) |
| Sensitivity | 93.2 dB / 88 dB / 88.3 dB |
| Impedance | 2 Ω / 3 Ω / 5 Ω |
What you are ordering
The exact BLAM model shown above, SKU BLAM-S165300. Match power, impedance, dimensions and included components to your planned system before checkout.
Technical information verified against the official BLAM product page.
