Product overview

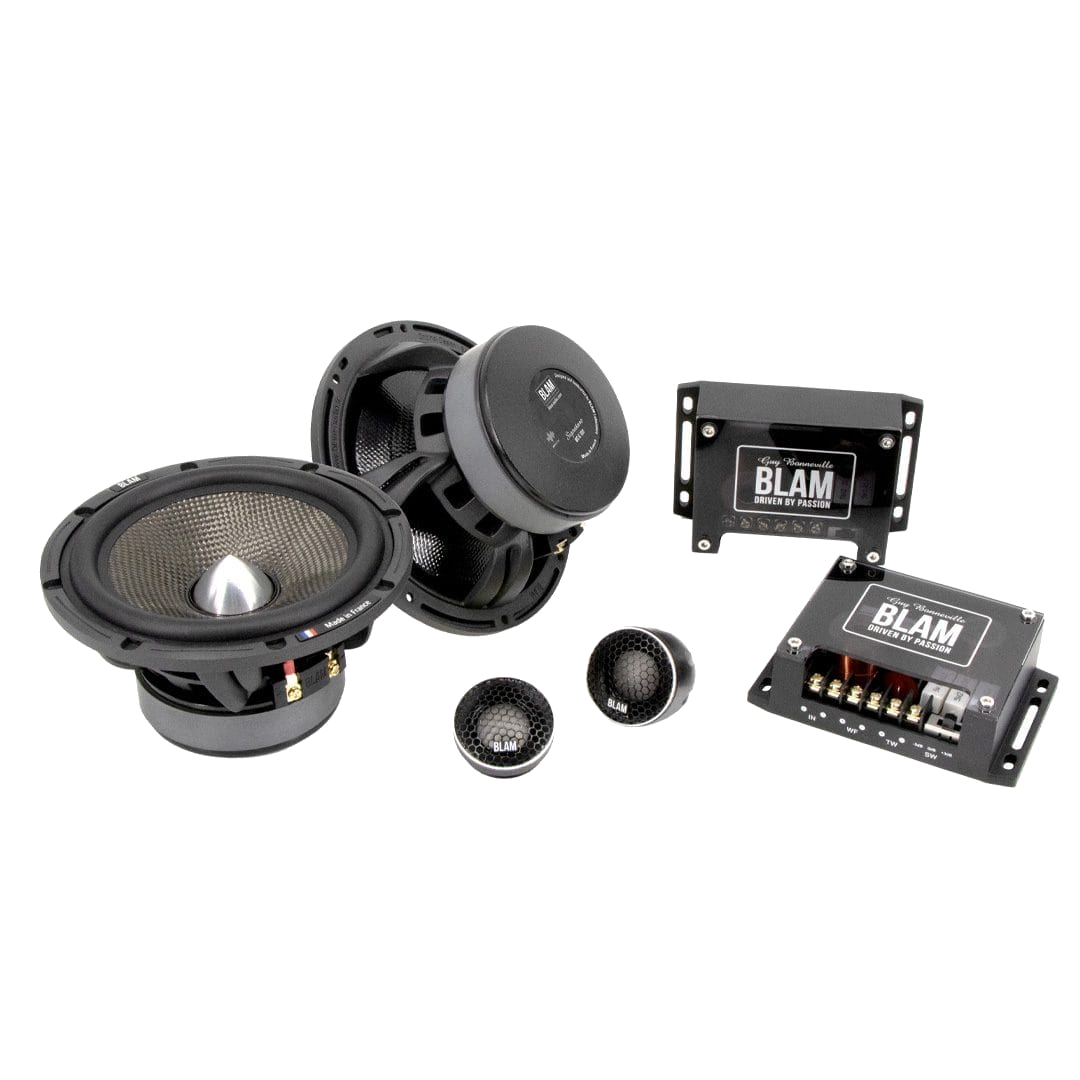

The S 165.100 MG kit is a 2-way component system designed to deliver precise and dynamic sound reproduction. It includes two 165 mm (6.5″) woofers and two 25 mm (1.1″) pure magnesium tweeters, along with two external crossovers with tweeter level adjustment (+3 dB / 0 dB / −3 dB) to tailor the listening experience to the installation.
Key product details
- Components: 2 x 165mm woofers (WS 6.100) and 2 x 25mm magnesium tweeters (TSM 25 MG 45)
- Frequency response: 50 Hz – 5 kHz (woofer) / 1.2 kHz – 23 kHz (tweeter)
- Sensitivity: 93.2 dB (woofer) / 89 dB (tweeter)
- Impedance: 2 Ω (woofer) / 5 Ω (tweet)
- External BFX 02 filter – crossover: 4 kHz, tweeter level adjustment (+3 / 0 / −3 dB)
- BFX 02 AUDIOPHILE GRADE CROSSOVER
- 12/12 dB/octave 2 way crossover
Technical specifications
| Verified product specifications | |
|---|---|
| Maximum power | 250 W |
| Nominal power | 125 W |
| Frequency response | 50 Hz – 5 kHz |
| Sensitivity | 93.2 dB |
| Impedance | 2 Ω |
| Mounting depth | 80.2 mm |
| Maximum power | 100 W |
| Nominal power | 15 W |
| Frequency Response | 1.2 kHz – 23 kHz |
| Sensitivity | 89 dB |
| Impedance | 5 Ω |
| Mounting depth | 14.5 mm |
| Crossover Point | 3 kHz |
| Official product specifications | |
| Frequency Response | 50 Hz – 5 kHz (woofer) / 1.2 kHz – 23 kHz (tweeter) |
| Sensitivity | 93.2 dB (woofer) / 89 dB (tweeter) |
| Impedance | 2 Ω (woofer) / 5 Ω (tweet) |
| External Bfx 02 Filter – Crossover | 4 kHz, tweeter level adjustment (+3 / 0 / −3 dB) |
What you are ordering
The exact BLAM model shown above, SKU BLAM-S165100MG. Match power, impedance, dimensions and included components to your planned system before checkout.
Technical information verified against the official BLAM product page.
