Product overview

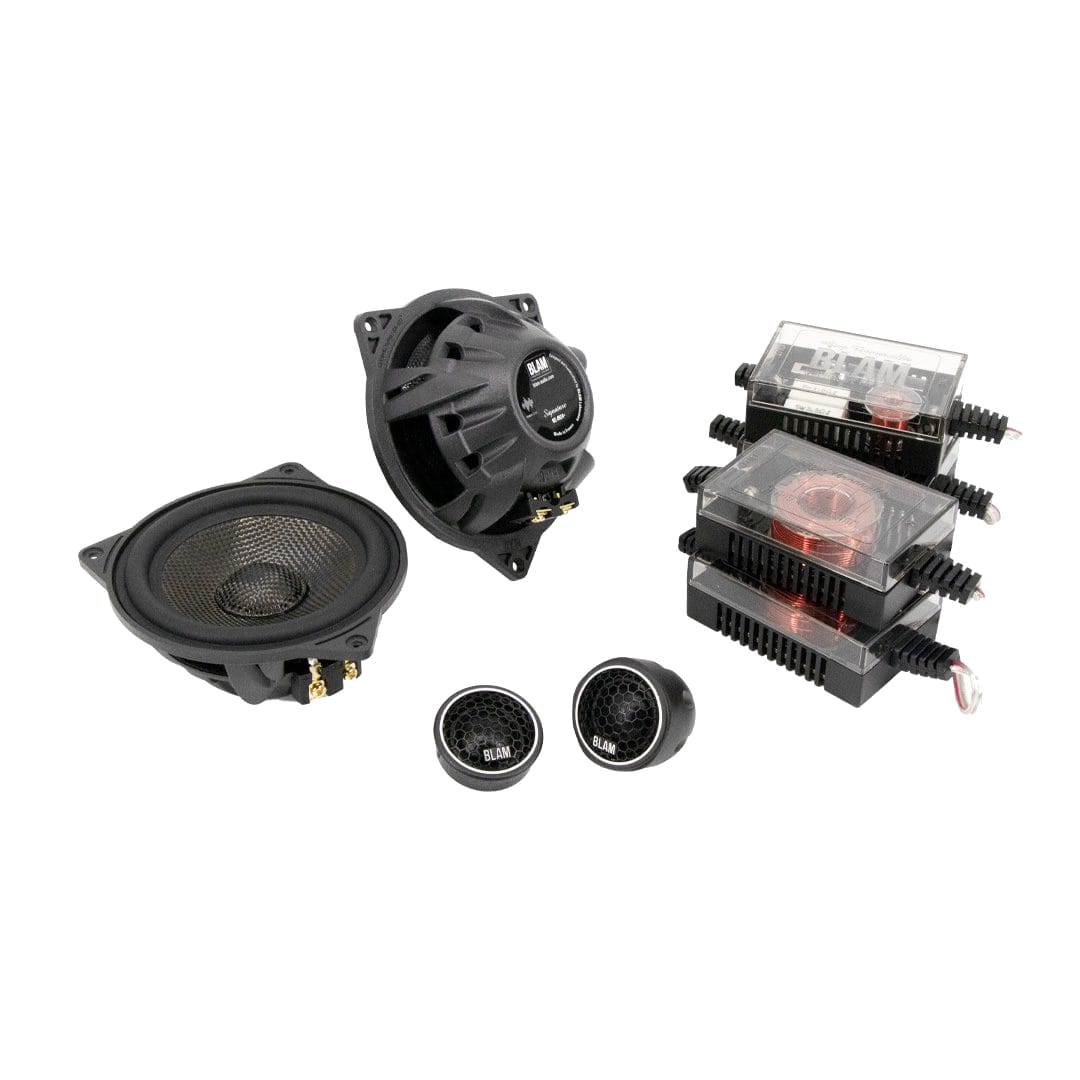

The S 100N24+ kit is a premium two-way component system, specifically designed for Mercedes and BMW. It includes two 100 mm (4″) midrange drivers and two 20 mm (3/4″) soft dome tweeters, along with four external crossovers for precise frequency adjustment. The kit comes with spacers for easy installation and ensures high-fidelity sound reproduction thanks to its superior components.
Key product details
- Components: 2 100 mm midranges (MS 4N 24), 2 20 mm tweeters (TS 20 HR)
- Midrange frequency response: 95 Hz – 9 kHz
- Tweeter frequency response: 2.5 kHz – 43 kHz
- Filters: BFT 01 and BFW 01, 4.5 kHz and 3.5 kHz crossovers
- Installation: Spacers included for easy assembly
- Application: Mercedes and BMW
- Hi-power 3Ω 100mm/ 4’’ 2 ways component speaker system passive with crossovers
- BFT01 HIGH QUALITY CROSSOVER
- High pass 12 dB/octave crossover
- BFW01 HIGH QUALITY CROSSOVER
- Low pass 6 dB/octave crossover
Technical specifications
| Verified product specifications | |
|---|---|
| Maximum power | 120 W |
| Nominal power | 60 W |
| Frequency response | 95 Hz – 9 kHz |
| Sensitivity | 88 dB |
| Impedance | 3 Ω |
| Frequency response | 2.5 kHz – 43 kHz |
| Sensitivity | 88.3 dB |
| Impedance | 5 Ω |
| Official product specifications | |
| Midrange Frequency Response | 95 Hz – 9 kHz |
| Tweeter Frequency Response | 2.5 kHz – 43 kHz |
What you are ordering
The exact BLAM model shown above, SKU BLAM-S100N24. Match power, impedance, dimensions and included components to your planned system before checkout.
Technical information verified against the official BLAM product page.
