Product overview

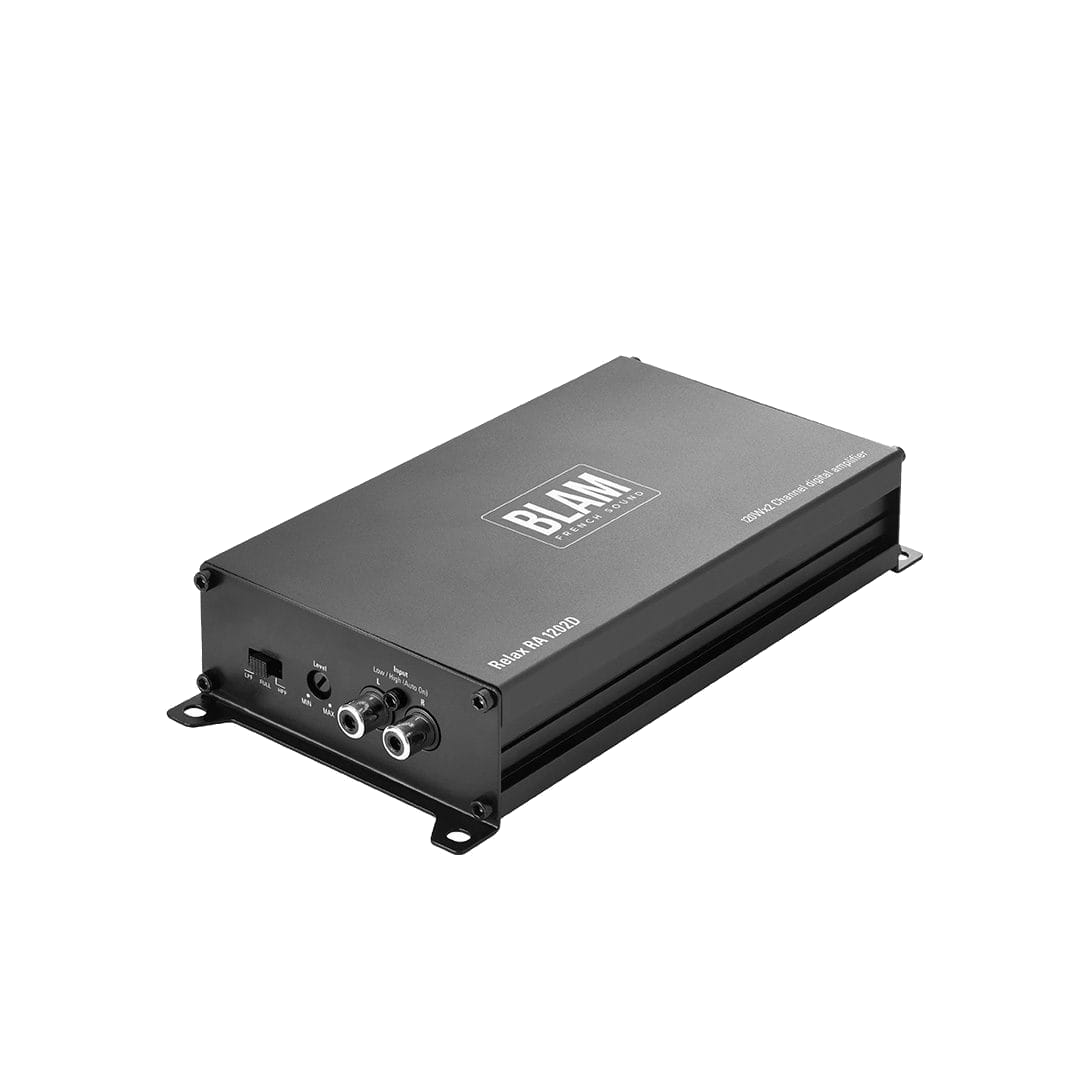

The RA 1202 D amplifier is an ultra-compact 2-channel Class D amplifier, offering both power and a compact design for your audio setup. It delivers 120 W RMS per channel into 2 Ω and 80 W RMS per channel into 4 Ω, with a bridged mode of 240 W into 4 Ω, ideal for driving speakers or subwoofers.
Key product details
- 2 channels – 120 W RMS (2 Ω) / 80 W RMS (4 Ω) – bridge 240 W (4 Ω)
- 120 Hz low-pass and 100 Hz high-pass filters, 0–12 dB bass boost at 45 Hz
- Frequency response 20 Hz – 22 kHz and signal-to-noise ratio >90 dB
- Protections against short circuits, reverse polarity and overheating
- Wired remote control included for convenient control
- Protections: short circuit / low impedance / reversal of polarity / heat protection
Technical specifications
| Verified product specifications | |
|---|---|
| Rms Power (4 Ω ) | 2 x 80 W |
| Rms Power (2 Ω) | 2 x 120 W |
| Low Pass Crossover | 120 Hz (fixed) (12 dB/octave) |
| High Pass Crossover | 100 Hz (fixed) (12 dB/octave) |
| Frequency Response | 20 Hz – 22 kHz |
| Dimensions (L X L X H) | 160 mm x 91,4 mm x 38 mm – 6.3’’x 3.6’’x 1.4’’ |
What you are ordering
The exact BLAM model shown above, SKU BLAM-RA1202. Match power, impedance, dimensions and included components to your planned system before checkout.
Technical information verified against the official BLAM product page.
