Product overview

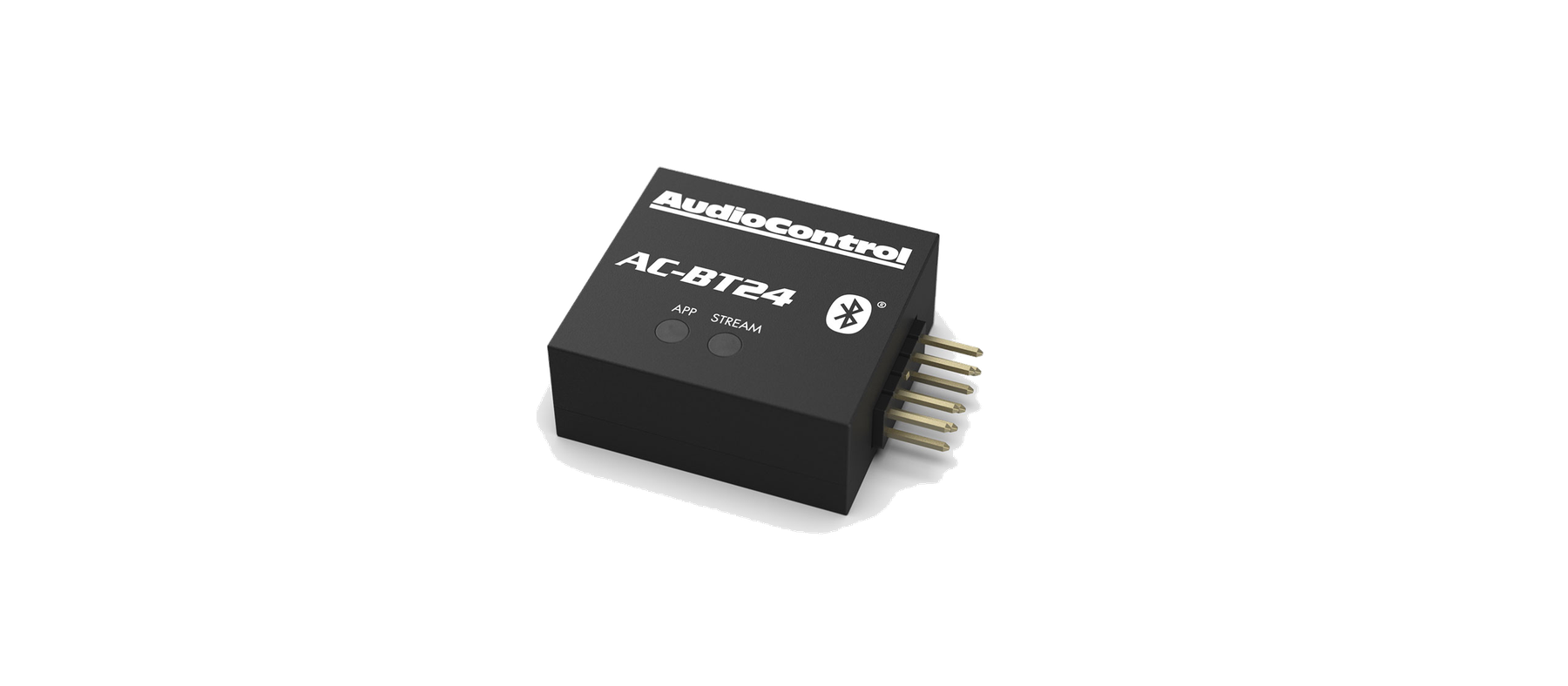

The AC-BT24 enables high definition Bluetooth® audio streaming (aptX HD support) and programming for AudioControl DSP products featuring the Option Port. Stream hires audio directly to DM Series DSPs, D Series amplifiers, or connect via Bluetooth and the DM Smart DSP app for initial programming and setup. The AC-BT24 also allows for wireless control of the AudioControl DM-RTA via the DM-RTA app for iOS and Android. For Dealer Ordering Please Click Here
Key features
- High Definition Low-Latency Audio Streaming
- aptX TM HD Support
- 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
- Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
- Simultaneous Audio Streaming and DSP Programming
- Compatible with: DM-810, DM-608, D-6.1200, D-4.800, D-5.1300, DM-RTA
Technical specifications
| bluetooth | |
|---|---|
| Version | 4.2 |
| Bluetooth | aptX HD Compatible |
| Bluetooth | UART Interface |
| OUTPUT | |
| Output | Dual Differential Class AB Output Stage |
| PERFORMANCE | |
| Signal to Noise Ratio | 96 dB |
| Maximum Data Rate | 3 Mbps (typical 1.6 Mbps) |
| Operating Range | 10+ meters (depending on environment) |
| GENERAL | |
| Power Requirements | Provided by Option Port |
| WEIGHTS & DIMENSIONS | |
| Dimensions | 1.4”L x 1.0”W x 0.5”H |
| Weight | 0.3 oz (9 g) |
What you are ordering
The exact AudioControl model shown above, SKU AC-BT24. Review the listed inputs, outputs and system requirements before ordering.
Technical information verified against the official AudioControl product page.
