Product overview

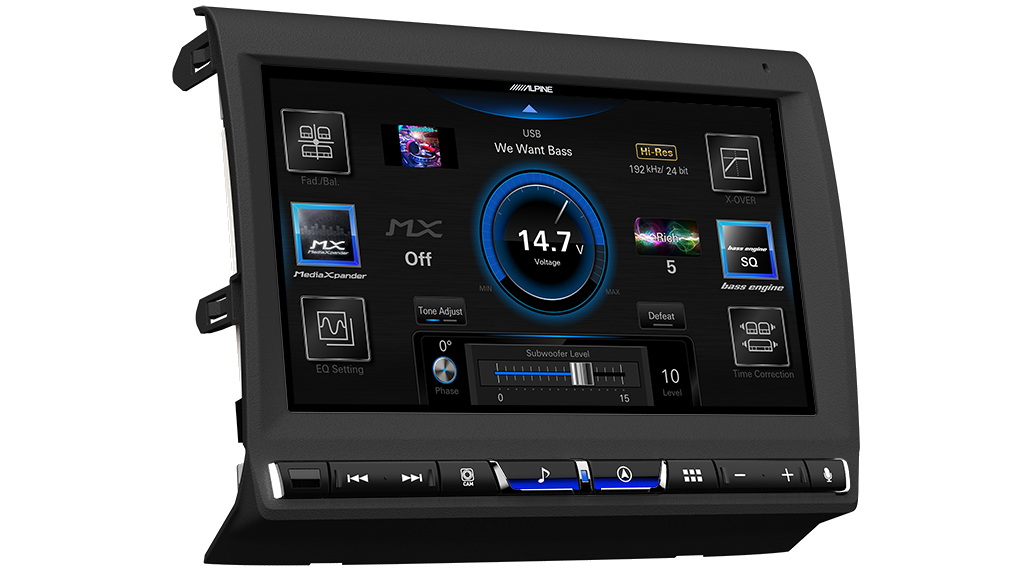

9″ Integrated Hi-Res Audio Receiver with Wireless Apple CarPlay / Android Auto (USB) / HDMI / USB / Dual Camera / Bluetooth / Hi-Res Audio Wireless / LDAC / DAB+ suitable for LandCruiser 70 Series
For all 70 Series enthusiasts who demand the ultimate in-car experience, Alpine’s all-new i905i-LC70 has been engineered with cutting-edge design to elevate the in-cabin aesthetic. The high-definition WXGA 9” display acts as a stunning new centrepiece to the interior, integrating seamlessly whilst also showcasing design cues in-line with the 70 Series rugged history. Discover an industry-leading innovation masterpiece, delivering unmatched quality and value for the ultimate 21 st century off-road lifestyle.

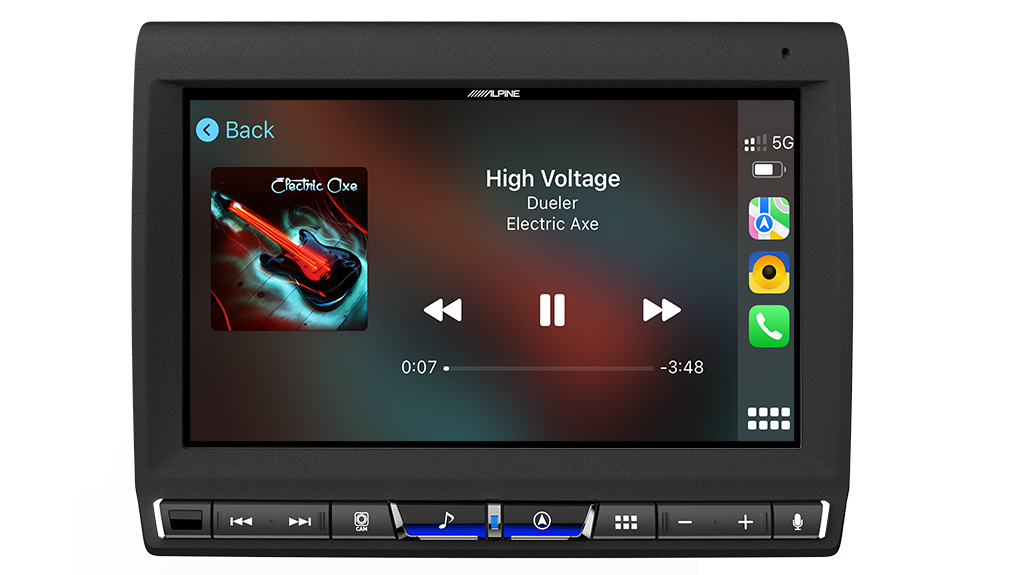

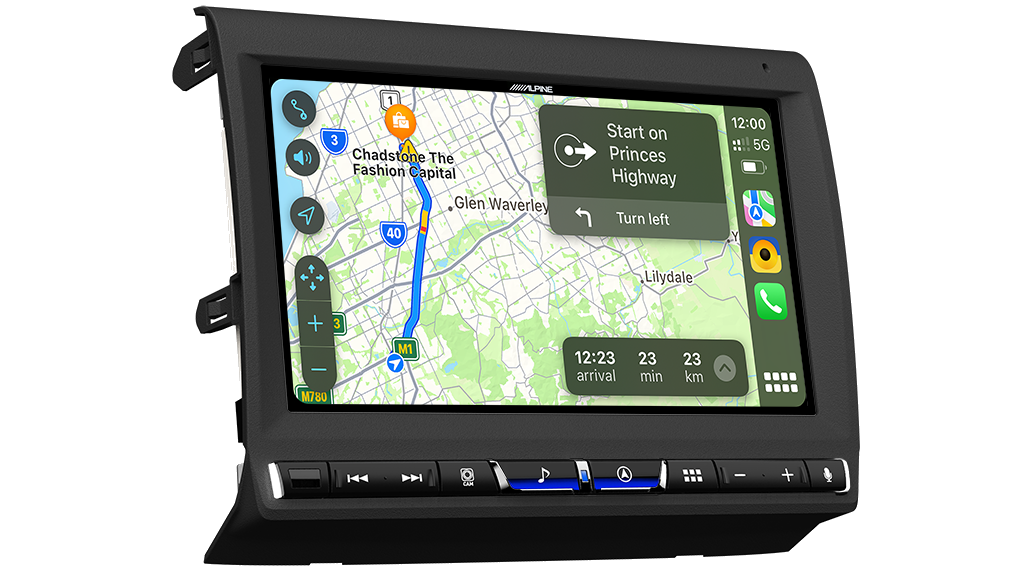

Equipped with wireless Apple CarPlay and Android Auto (USB), an endless array of entertainment and smartphone apps are available to use in your dashboard. Get directions with maps and navigation apps, send and receive messages, make calls and listen to music all without a cable in sight.

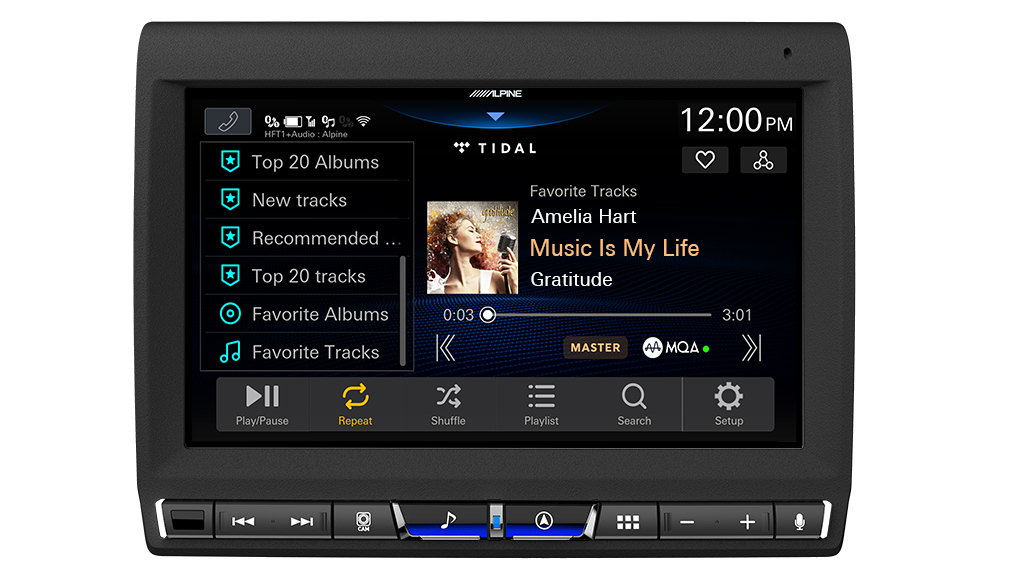

With TIDAL now built-in, soak in your favourite songs with a new level of fidelity and elevate your music streaming experience in wireless Hi-Res audio like you’ve never heard it before. For those with a large existing library of Hi-Res audio content that is also supported up to 96kHz 24bit.
With a world-first innovation, the i905i-LC70 equipped with a powerful built-in Class-D amplifier to deliver the richness and dynamics of your music for the most superior sound performance.
Moreover, with Alpine’s extensive sound tuning built-in you can apply simple one touch audio adjustments to make your cabin space sound brilliant, or for pro-level users and enthusiasts a host of advanced tuning functions are available.
The i905i-LC70 is the new benchmark for all 70 Series enthusiasts—elevating the interior aesthetic in every way possible, whilst delivering an incredible connectivity and multimedia experience with impeccable audio performance.
Key features
- Overview
- Features
- Manuals & Updates
- Vehicle Solutions
- i905i for LandCruiser 70 Series
- Compatibility
- Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Auto Memory
- Seek Mode: Local, DX, Pre-Set, Service
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Auto Ensemble/Service Memory
Technical specifications
| Specifications | |
|---|---|
| Preset Stations (FM | 3×12 / DAB: 3×12 / AM: 2×12) |
| Memory | Auto Memory |
| Seek Mode | Local, DX, Pre-Set, Service |
| RDS Functions | PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT |
| Speed Dial | 4 Preset Memory (per phone) |
| Call History Display | Outgoing Calls / Incoming Calls / Missed Calls |
| Speech Volume Level Adjustment | (Outgoing and Incoming) |
| USB port 1 | data port / USB port 2: charging port |
| Music Playback | FLAC, MP3, WMA, AAC, WAV, APE compatible |
| Video Playback | MP4, MOV, FLV, MKV compatible |
| Supported Video Coding | MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2 |
| 2x Camera Connection (Camera Direct connector) Note | does not support KCX-C250MC camera switch box |
| Menu Language | 24 Languages |
| Preout (Front, Rear) | 4V/10k ohms (max.) |
| Preout (Subwoofer) | 4V/10k ohms (max.) |
| Screen Size | 9 inch Laminated WXGA |
| LCD Type | Transparent Type TN LCD |
| Operation System | TFT Active Matrix |
| Illumination System | White LED Backlighting |
| Effective Number of Picture Elements | 99.99% |
| Colour System | NTSC, PAL |
| Technical specifications | |
| Sensitivity | Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms) |
| Sensitivity | 50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms) |
| Sensitivity | Usable Sensitivity – 25.1μV/28 dBf |
| Sensitivity | Usable Sensitivity – -100dBm |
| Specifications | |
| USB Requirements | USB 2.0 |
| Max. Power Consumption | 2,400 mA (CDP Support) |
| USB Class | Mass Storage Class, Play From Device |
| File System | FAT 16/32, exFAT |
| MP3 Decoding | MPEG-1/2 AUDIO Layer-3 |
| WMA Decoding | Windows Media™ Audio |
| AAC Decoding | ACC-LC format ′′.m4a′′ file |
| Number of Channels | 2-Channel (Stereo) |
| Frequency Response | 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate |
| Total Harmonic Distortion (at 1kHz) | 0.005% |
| DynamicRange(at 1kHz) | 95 dB |
| Signal-to-Noise Ratio | 95 dB |
| Channel Separation (at 1kHz) | 90 dB |
| USB Class | Charge Only |
| Max. Power Consumption | 1,500 mA (CDP Support) |
| BLUETOOTH® Version | Bluetooth V4.2 (2,402 – 2,480 MHz) |
| Output Power | +4 dBm/2.51 mW Ave. (Power Class 2) |
| HFP | HFP (Hands Free Profile) |
| A2DP | A2DP (Advanced Audio Distribution Profile) |
| AVRCP | AVRCP (Audio/Video Remote Control Profile) |
| Input Format | 720p/480p/VGA |
| Output Format | 720p/480p |
| Technical specifications | |
| Sensitivity | Reception Sensitivity (Search) -136dB max. |
| Specifications | |
| Din Size | 1DIN chassis and 9” Capacitive Touch Screen |
| Chassis Size (W x H x D) mm | 178 x 50 x 149.6mm |
| Display Size (W x H x D) mm | 268.9 x 178 x 54.7 |
What you are ordering
The exact Alpine model shown above, SKU I905-LC70. Confirm vehicle compatibility for installation kits, interfaces and vehicle-specific systems before checkout.
Product information verified against the official Alpine product page.
