Product overview

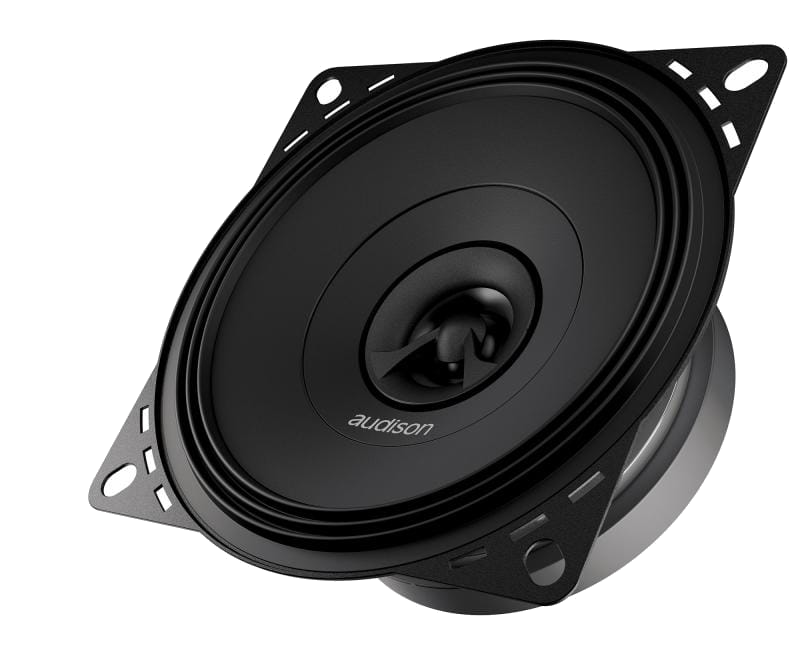

APX 4 features a concentric coaxial tweeter. With a single point of sound emission, it delivers a consistent in-phase response, enabling accurate reconstruction of the acoustic scene, comparable to a system with a separate woofer and tweeter. The 4" cone surround features the exclusive shallow Triple Wave profile, ensuring maximum excursion linearity.
Key features
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
- Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
Technical specifications
| Technical Specs LF | |
|---|---|
| Woofer Size | 100 mm |
| Impedance | 4 Ohm |
| Power Handling – Peak | 120 W |
| Power Handling – Continuous | 40 W |
| Sensitivity | 91 dB |
| Frequency Response | 80 ÷ 23k |
| Voice Coil Diameter | 32 mm (0.59 in) |
| Magnet Size | 75 x 40 x 10 |
| Xmax | 1.3 mm (0.05 in) |
| Technical Specs HF | |
| Tweeter Size | 24 mm (0.94 in) |
| Voice Coil Diameter | 15 mm (0.59 in) |
| Electric-acoustic Specs | |
| Re | 3.1 Ohm |
| Fs | 125 Hz |
| Mms | 5.3 g (0.19 oz) |
| Cms | 0.3 |
| Bl | 3.2 |
| Qms | 8 |
| Qes | 1,2 |
| Qts | 1 |
| Vas | 1.5 l (0.05 ft) |
| LE | 0.04 mH |
| General | |
| Weight | 0.49 kg |
| Dimensions | |
| Dimension A | 102 mm (4.02 in) |
| Dimension A3 | 130 mm |
| Dimension B | 93 mm (3.66 in) |
| Dimension C | 43 mm (1.69 in) |
| Dimension D | 41 mm (1.61 in) |
What you are ordering
The exact Audison model shown above, SKU 69070030. Check the vehicle and system requirements before ordering OEM-fit or integration accessories.
