Product overview

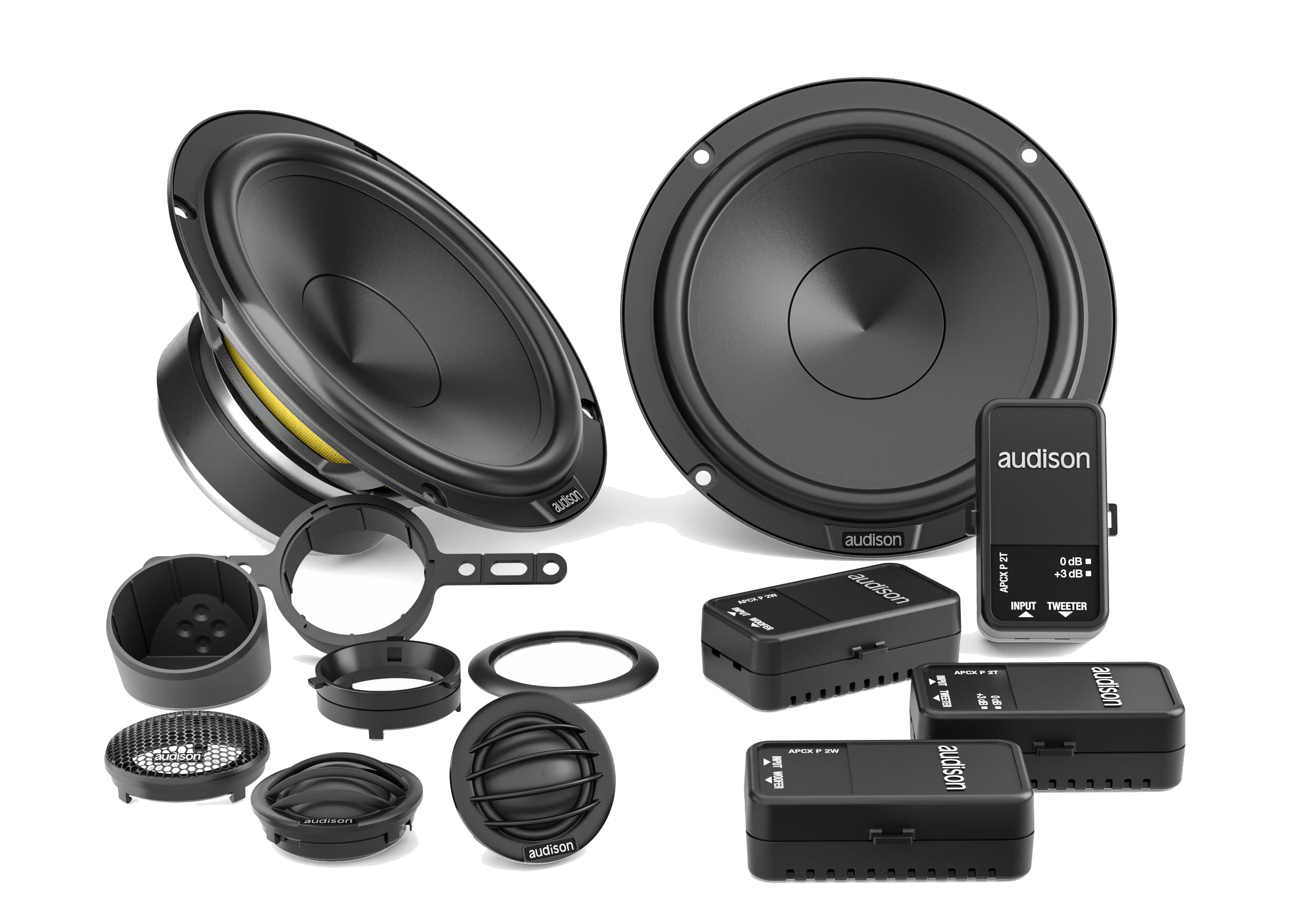

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.
Key features
- AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
- Three mounting accessories supplied to provide a solution for any type of installation.
- Magnetic group with double Neodymium tablet for an excellent high frequency extension.
- 1 CCAW voice coil for superior dynamic response.
- Dome profile optimized with FEM simulations for a wide off-axis dispersion.
- Increased excursion of the mobile group for a superior dynamic response.
- Optimized electro-acoustic parameters to maximize performance for OEM placements.
- Magnetic group sized for perfect control even at maximum cone excursion.
Technical specifications
| Technical Specs LF | |
|---|---|
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 345 W |
| Power Handling – Continuous | 115 W |
| Frequency Response | 50 ÷ 24k |
| Voice Coil Diameter | 32 mm (1.26 in) |
| Magnet Size | 100 x 40 x 18 |
| Crossover Level Adjustment | Tweeter Level; 0 / +3 |
| Technical Specs HF | |
| Tweeter Size | 29 mm (1.14 in) |
| Voice Coil Diameter | 25 mm (1.26 in) |
| Dome Material | TETOLON FIBRE |
| Electric-acoustic Specs LF | |
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Mms | 14.6 g |
| Cms | 0.47 |
| BL | 5.35 |
| Qms | 7.6 |
| Qes | 1,74 |
| Qts | 0.55 |
| Vas | 11.4 l |
| Le | 0.29 mH |
| D | 132 sq mm (20.46 sq in) |
| Spl | 89.5 dB |
| Xmax | 5.6 mm (0.22 in) |
| Kit Tech Data | |
| Crossover Low-Pass | Low-Pass: 4 kHz @ 6 dB/Oct |
| Crossover Hi-Pass | Hi-Pass: 4 KHz @ 12dB/Oct. |
| Cone Diameter | 132 mm |
| General | |
| Weight Woofer | 1.45 kg |
| Weight Tweeter | 0.067 kg |
What you are ordering
The exact Audison model shown above, SKU 69051055. Check the vehicle and system requirements before ordering OEM-fit or integration accessories.
