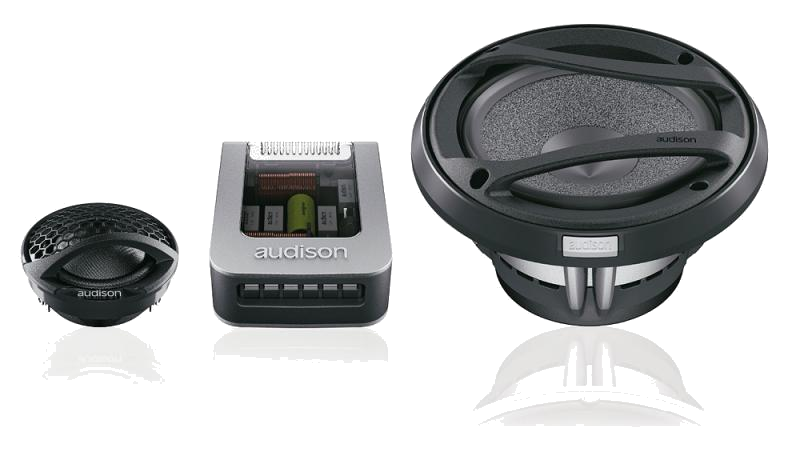

Product overview
The prestigious Eisa Award European In-Car Speaker System 2010-2011 was bestowed to the AV K6 and AV K5 kits, which gather and comprise the most advanced technologies developed for the Audison components, at the service of music.The whole R & amp;D laboratory's experience was poured into the design of these precious components, to create a synergy that can offer the highest quality sound in terms of bandwidth, dynamics of the musical message, naturalness and richness of details. The new reference for their own category.
Key features
- TWEETER1 Tetolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
- CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
- The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
- High flux density Neodymium magnet, for very high efficiency and detailed sound.
- The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- Cotton-fibre pressed paper cone with treatment.
Technical specifications
| Technical Specs LF | |
|---|---|
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 250 W |
| Power Handling – Continuous | 125 W |
| Frequency Response | 50 ÷ 22k |
| Voice Coil Diameter | 30 mm (1.18 in) |
| Magnet Size | 90 x 40 x 15 |
| Crossover Level Adjustment | +2; 0; -2 dB |
| Technical Specs HF | |
| Tweeter Size | 28 mm (1.1 in) |
| Voice Coil Diameter | 28 mm (1.18 in) |
| Electric-acoustic Specs LF | |
| Re | 3.5 Ohm |
| Fs | 68 Hz |
| Mms | 16.1 g |
| Cms | 0.34 |
| BL | 5.5 |
| Qms | 7.84 |
| Qts | 0.74 |
| Vas | 8.2 l |
| Le | 0.31 mH |
| Spl | 91 dB |
| Xmax | 3 mm (0.12 in) |
| Kit Tech Data | |
| Crossover Low-Pass | Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct. |
| Cone Diameter | 130 mm |
| General | |
| Weight Woofer | 1.2 kg |
| Weight Tweeter | 0.07 kg |
What you are ordering
The exact Audison model shown above, SKU 69051030. Check the vehicle and system requirements before ordering OEM-fit or integration accessories.
Technical information verified against the official Audison product page.
